Nota:

The majority of links (below) are to some fine catalog images placed on the World Wide Web by "Cruise Brothers", a group of Cadillac enthusiasts in the Hague, Netherlands.I would like to thank them profusely.  Their excellent work and presentation has saved me countless hours of work.



1966

Facts: 8-cylinder, 90° V8, 4.13 x 4.00" b&s, 429 ci, overhead valves, push rod actuated, 10.5:1 compression ratio, Rochester #701930 4 bbl carburetor [owner-enthusiast Corley Wadley wrote: Here's an update to consider for the 1966 Eldorado; another carb option for ‘66, and the original on my car, is a Carter AFB 4bbl¨] giving 340 BHP @ 4600 rpm, Turbo Hydra-Matic, 2.94:1 rear axle ratio (optional 3.21:1, "75" = 3.77:1), live rear axle suspension, coil springs and tube shock absorbers, front independent coil-springs with tube shock absorbers, full perimeter frame ("75" = backbone type), 129.5" wheel base, ("75" = 149.8"), 225" over-all length, "75" = 237.3-244.5"), 62.5" track front and rear ("75" = 62.5-63" front and rear), 8.00x15 tires ("Eldorado" = 9.00x15, weight: 4390-4725 lbs ("Eldorado" = 4500-4660 lbs, "60S" = 4615-4770 lbs, "75" = 5055-5436 lbs), 0-80 in 15.5 seconds., top speed 120-125 mph, 12-15 mpg ("Eldorado" = 8-14 mpg, "75" = 10-16 mpg). "Calais", "De Ville" and "Fleetwood" series; 12 models. Sixty Special Brougham added. The new cars had variable-ratio power steering permitting fast lock-to-lock for parking combined with a slower ratio for highway operation.

Options/accessories: automatic Climate Control (air-conditioner/heater system), electric seat warmer, tilt and telescope (3") steering wheel, 6-way power seat adjustment, 4-way power bucket seat adjustment, hazard warning flasher, headrests, reclining bucket seat, power door locks, "Twilight Sentinel" [headlight timer], Guide-Matic power headlamp control, automatic level control, Cruise Control, rear window de-fogger, soft-ray glass, controlled differential, power window regulators, power vent window regulators, remote-control trunk lock, signal-seeking pre-selector AM radio, AM/FM radio, AM/FM stereo radio, seat belts, rear compartment radio control (Fleetwood "75" only), radio foot control switch, cushion covers, rubber mats (contoured front, full width, contoured rear, full width, contoured front, 2-piece, contoured ear, 2-piece), luggage compartment mat, compass, litter box, Eldorado horn, door edge guards, spare tire cover, Optikleen windshield washer solvent, windshield washer anti-freeze and gas line de-icer, body polish, fabric cleaner, "Kar-Kleen" upholstery cleaner, Blue Coral compound, Blue Coral sealer, Magic Mirror cleaner and polish, Magic Mirror cream wax, chrome cleaner, cooling system inhibitor and sealer, whitewall tires, whitewall tire cleaner, tar and road oil remover, vinyl, leather and convertible top cleaner, touch-up paint (brush-in-cap or spray can), license frames. 14th in U.S. car sales ranking, 60S Brougham added;

Easy ID: New, flat grille with chrome center bar; new, vertical tail-light housing with horizontal bar splitting five-sided rear bumper housing. New wheel covers [these resemble very closely those used in 1965 - except that they have the vent openings to help brake cooling - and are not a reliable way of identifying these models].




(body styles): (see also Eldorado section, below); minor modifications, radical changes to "75"s, variable ratio power steering, optional heated front seat [rear on "75"s]; Fleetwood Brougham 4-door Sedan (C&D card set); story of '66 Sedan de Ville, CLC 4/92, cover and pp. 4-5

Models: [7/2000:  photo links have changed please go to this page]

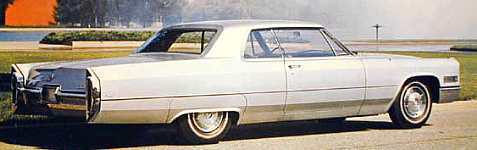

Calais Series [129½" wheel base]

68239 Hardtop sedan ( 13025)

68257 Hardtop coupe ( 11080)




68269 Sedan ( 4575)

De Ville Series [129½"]

68339 sedan ( 11860)

68357 Hardtop coupe ( 50580)

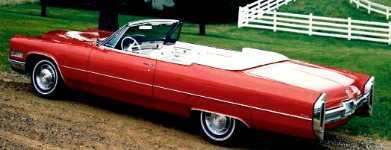

68367 DeVille Convertible ( 19200)




68369 hardtop sedan ( 60550)

Fleetwood Series

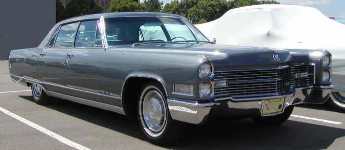

68069 60S sedan ( 5445)




68169 60S Brougham ( 13630)

68467 Eldorado Convertible ( 2250)  [owner-enthusiast Corley Wadley pointed out quite correctly: if you refer to the ’66 factory catalogue, the Eldorado for that year is a Fleetwood series car].

69723 "75"sedan ( 980) and

69733 "75" limousine ( 1037)

69890 156" wheel base commercial chassis ( 2463)

1966 model total (196675)

[more production statistics to be added after this point]




1967

Facts: 8-cylinder, 90° V8, 4.13x4.00 b&s, 429 cubic inches, overhead valves, push rod actuated, 10.5:1 compression ratio, Rochester Quadra-Jet #7028230), 340 BHP @ 4600 rpm, Turbo Hydra-Matic, 2.94:1 rear axle ratio (optional 3.21:1, "75" = 3.77:1) ("Eldorado" = same but mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, coil springs and tube shock absorbers, front independent coil-springs with tube shock absorbers ("Eldorado" = live rear axle with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube shock absorbers), full perimeter frame ("Eldorado" = integral boxed perimeter, "75" = backbone type), 129.5" wheel base, ("Eldorado" = 120", "75" = 149.8"), 225" over-all length ("Eldorado" = 221", "75" = 237.3-244.5"), 62.5" track front and rear ("Eldorado" = 63" in front, 63.5" in rear, "75" = 62.5-63" front and rear), 8.00x15 tires, "Eldorado" = 9.00x15, weight: 4390-4725 lbs ("Eldorado" = 4500-4630 lbs, "60S" = 4615-4770 lbs, "75" = 5055-5436 lbs), 0-80 in 15.5 seconds. ("Eldorado" = 15.3 seconds.), top speed 120-125 mph ("Eldorado" = 125-130 mph), 12-15 mpg ("Eldorado" = 12-14 mpg, "75" = 10-16 mpg). "Calais", "De Ville" and "Fleetwood" series; 12 models, 13th in U.S. car sales ranking; Calvo Colucci advertisement featuring 1967 Cadillac grille, MK, 2/1989, p.97 (HW collection) {***}. 1973 beat earlier production records, with 304,839 cars being built of that model year

Specifications [excerpted from 1967 product catalog]

Engine: Eight-cylinder, 340 HP, overhead, 90 degrees V-type; bore 4.13", stroke 4.0"; displacement 429 cu. in. Max. torque 480 ft.-lbs. Engine mounted in rubber at three points. Compression ratio 10.5 to 1.
Pistons: Aluminium alloy, slipper-type to reduce friction surfaces and permit nesting between crankshaft counterweights. New top compression ring inverted to pump oil upwards rather than down, one wide oil ring with expander; top compression ring molybdenum-filled to minimize wear on cylinder walls. Contoured piston head increases turbulence for fast, complete burning of fuel-air mixture.
Carburetor: New Quadrajet four-barrel downdraft with equalized manifold; mechanical fuel pump; dry-type air filter; new automatic choke.
Lubrication: Full-pressure. Full-flow oil filter standard.
Electrical System: 12-volt. 13-plate battery. High-capacity, 42-amp. generator (55 amp., air conditioned cars).
Gasoline Tank Capacity: Approximately 26 gallons. Eldorado approximately 24 gallons.
Turbo Hydra-Matic: Fully automatic, improved torque converter type with variable stator Except Seventy-Five models). Converter multiplies engine torque for increased driving thrust to drive wheels during acceleration in any gear (low, intermediate or high).
Rear Axle: Hypoid. Differential housing offset to provide straight-line drive. Ratio is 2.94 with a 3.21 axle available (3.21 only on Eldorado). The 3.21 axle is standard on all air-conditioned models and the Seventy-Five models. Available (except Eldorado) is the controlled differential which directs power to the rear wheel having better traction.
Front Suspension: Spherical joint with Cadillac independent, helical-coil-type springs. Rubber-mounted strut rods and rubber bushings absorb impacts and isolate road noise. (Torsion bar suspension on Eldorado.)
Rear Suspension: Four-link drive. Rear springs are helical-coil-type. Rubber bushings for quieter, softer ride. (Single-leaf springs with two horizontal and two vertical shock absorbers on Eldorado.)
Brakes: Cadillac power brakes with self-adjusting shoes; finned front and composite finned rear drums. Split hydraulic master cylinder provides independent piston and fluid reservoir for front and rear brakes.
Parking Brake: Serves as true auxiliary brake... will not lock in position with engine running and car in gear... can be operated as a foot emergency brake while car is in motion. Automatically releases when transmission is in any drive range with engine running.
Steering: Cadillac variable ratio power steering is standard equipment (except Seventy-Five models). Energy absorbing steering wheel and column. Overall steering ratio of 16.7 to 1 (except 18.2 on Seventy-Five models and 16.3 on Eldorado) and 38.5 degrees turning angle provides fast response and short turning diameter.
Frame: Perimeter frame is fully boxed in its entire length with hidden bulkheads for additional torsional rigidity. Eldorado has a frame especially designed for its front wheel drive and front and rear suspension systems.
Tires: Low-pressure, 2-ply, tubeless, size 9.00 x 15 on all models except the Fleetwood Seventy-Five, on which the size is 8.20 x 15, 4-ply. Black sidewalls are standard on all models. White sidewalls may be selected on all models.
Cornering Lights: (standard equipment) On the side of front fenders, activated by directional signal lever when headlamp switch is on. Project a beam of light from the side of the car, thus illuminating roadside and road signs for convenience at night.
Tread: Front and rear, 62.5". (Eldorado 63.5", front; 63", rear.)
Wheelbase: 129.5" (Fleetwood Sixty Special Sedan and Brougham, 133"; Fleetwood Seventy-Five, 149.75"; Eldorado, 120".)
Overall Length: 224" (Fleetwood Sixty Special Sedan and Brougham, 227.5"; Fleetwood Seventy-Five, 244.5"; Eldorado, 221".)
Additional Body Colors not shown on cars illustrated include: Grecian White, Regal Silver, Summit Gray, Marina Blue, Admiralty Blue, Sherwood Green, Regent Maroon, Crystal Firemist, Olympic Bronze Firemist and Ember Firemist.

Easy ID: New, rear slanting egg-crate grille with broad, rectangular openings.  New front-wheel drive Eldorado model.

The new, front-wheel drive Eldorado



(body styles): (see also Eldorado section, below); stretch, custom, NIT 49, pp. 70-71; custom hearse by Eggli of Lausanne, (book, Histoire de l'Automobile, Atlas); Eldorado 2-door Coupe, front cover CA 12/91, C&D card set; "75" limousine (CCI, 27:2); special open-top Eldorado Coupe (special issue CCIX, P.25); introduction to 1967 models in MT 11/66, p.83.

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

1967 Calais Coupe

1967 Calais Sedan

1967 Calais hardtop sedan

De Ville Series

1967 Coupe de Ville

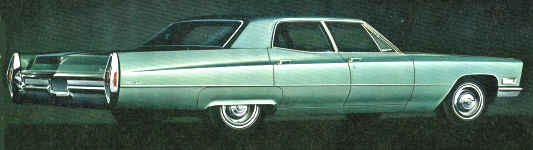

1967 Sedan de Ville

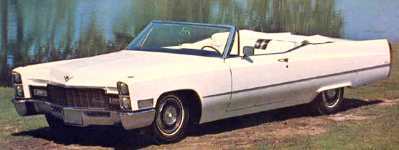

1967 De Ville convertible

1967 De Ville hardtop sedan

Fleetwood Series

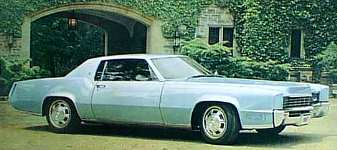

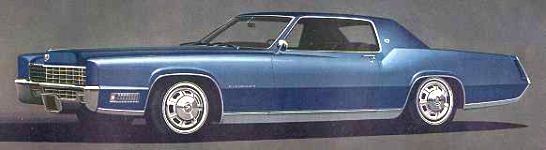

1967 Fleetwood Eldorado coupe


1967 Fleetwood "Sixty-Special"





1967 Fleetwood Brougham

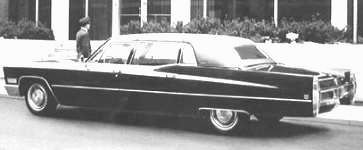

1967 Fleetwood sedan and Fleetwood limousine




Follow the restoration of a 1967 Cadillac DeVille convertible:  check out this site !!!]




1968
  [to continue editing from this point]

SPECIFICATIONS

ENGINE: Eight-cylinder, 375-HP overhead 90 degrees V-type; bore 4.30, stroke 4.06, displacement 472 cu. in. Max. torque 525 ft.-lbs. Engine mounted in rubber at three points. Compression ratio 10.5 to 1.
PISTONS: Aluminium alloy, slipper-type cam, ground to reduce friction surfaces and permit nesting between crankshaft counterweights. One wide oil ring with expander; top compression ring molybdenum-filled to minimize wear on cylinder walls. Contoured piston head increases turbulence for fast, complete burning of fuel-air mixture.
CARBURETOR: Quadrajet four-barrel downdraft with equalized manifold; mechanical fuel pump; dry-type air filter; new automatic choke. Air injection reactor system to reduce hydrocarbons in exhaust.
LUBRICATION: Full-pressure. Full-flow oil filter standard.
ELECTRICAL SYSTEM: New 12-volt. 15-plate battery. High-capacity, 42-amp. generator (55 amp., air conditioned cars).
GASOLINE TANK CAPACITY: Approximately 26 gallons. Eldorado approximately 24 gallons.
TURBO HYDRA-MATIC: Fully automatic, improved torque converter type with fixed stator. Converter multiplies engine torque for increased driving thrust to drive wheels during acceleration in any gear (low, intermediate or high).
REAR AXLE: Hypoid. Differential housing offset to provide straight-line drive. Completely new, heavier and stronger rear axle and differential, redesigned for the unusually high torque of the new, 472 V-8 engine. Ratio is 2.94 to 1 (3.07 to 1 on Eldorado), 3.21 to 1 axle on Seventy-Five models. Available (except Eldorado) is the Controlled Differential which directs power to the rear wheel having better traction.
FRONT SUSPENSION: Spherical joint with Cadillac independent, helical-coil-type springs. Rubber-mounted strut rods and rubber bushings absorb impacts and isolate road noise. (Torsion bar suspension on Eldorado.)
REAR SUSPENSION: Four-link drive. Rear springs are helical-coil-type. Rubber bushings for quieter, softer ride. (Single-leaf springs with two horizontal and two vertical shock absorbers on Eldorado.)
BRAKES: Cadillac power brakes with self-adjusting shoes; finned front and composite finned rear drums. Split hydraulic master cylinder provides for front and rear brakes. Power front disc brakes optional on all models.
PARKING BRAKE: Serves as true auxiliary brake... will not lock in position with engine running and car in gear... can be operated as a foot emergency brake while car is in motion. Automatically releases when transmission is in any drive range with engine running.
STEERING: Cadillac variable ratio power steering is standard equipment (except Seventy-Five models). Energy absorbing steering column and padded steering wheel hub. Overall steering ratio of 16.6 to 1 (except 18.2 on Seventy-Five models and 16.3 on Eldorado) and 38.5 degrees turning angle provides fast response and short turning diameter.
FRAME: Perimeter frame is fully boxed in its entire length with hidden bulkheads for additional torsional rigidity. Eldorado has a frame especially designed for its front wheel drive and front and rear suspension systems.
TIRES: Low-pressure, 2-ply, tubeless, size 9.00 x 15 on all models except the Fleetwood Seventy-Five, on which the size is 8.20 x 15, 4-ply. Black sidewalls are standard on all models. White sidewalls are optional.
CORNERING LIGHTS: On the side of front fenders, activated by directional signal lever when headlamp switch is on. They project a beam of light from the side of the car, thus illuminating roadside and road signs for convenience at night.
TREAD: Front and rear, 62.5". (Eldorado 63.5", front; 63", rear.).
WHEELBASE: 129.5" (Fleetwood Sixty Special and Brougham, 133"; Fleetwood Seventy-Five, 149.8"; Eldorado, 120".)
OVERALL LENGTH: 224.7" (Fleetwood Sixty Special and Brougham, 228.2"; Fleetwood Seventy-Five, 245.2"; Eldorado, 221".)
ADDITIONAL BODY COLORS not shown on cars illustrated include: Arctic Blue, Normandy Blue, Ivanhoe Green, Sudan Beige, Regent Maroon, Baroque Gold, San Mateo Red, Monterey Green Firemist, Rosewood Firemist and Madeira Plum Firemist.
NOTE: When leather is used in the DeVille and Fleetwood Series, richly textured vinyl is provided in certain areas.

**** Cadillac began 1968 with a new power plant. The 472 became one of the most powerful Cadillac engines (alongside the V-16). Rated at 390 HP, Cadillacs of the 1968-1973 vintage became muscle cars wearing tuxedos.

A Turbo Hydramatic 400 transmission provides smooth shifting as well as a very civilized ride. Step on the gas though, and the shifting becomes a kick in the pants taking you from 0-100 in less than 15 seconds. At 4000 pounds, this car is definitely not a slalom driver; But when you have 500 ft/lbs of torque, you can correct any kind of steering deficiencies with the gas pedal.

Indeed, this power plant is still alive. Just go to any NHRA meet, and you will see variants of the 472 in dragsters and pro-stockers. The motor is a very well designed piece of machinery. At 191,000 miles, mine still can cruise down the highway without skipping a beat. Gas mileage is pretty good considering the magnitude of things. On the city I get around 12 miles to the gallon (that's if I don't use the local stop light as a skid pad). On the highway is where the Caddy is king. I average around 17 mpg at 60 mph. Once I makeshift connected a tachometer to see what rpm's I pull on the highway. It barely registered 1800 rpm's at 65 mph. No wonder.

The Eldorado enjoyed the same power plant with the obvious exception of the front wheel drive transmission. Aside from the different exteriors, just like the previous year, Eldorados and De Villes shared the same interiors.

One detail to keep in mind for those who own, or plan to own a 1968 Cadillac is the fact that GM had a strike that year. So there are two different VIN eras when referring to certain parts. I guess the engineers had time to make some changes during the strike, as some of these items became standard for the 1969 model year. The changes made were to the air conditioning system as well as the power steering system. Also, 1968 Cadillacs resemble the body style of the 1967's, but don't be fooled when looking for parts. Body wise, their hoods are unique since 1968 was the first year of the unexposed windshield wipers. Hence, the hood is slightly longer on the 68. Rear bumpers on the 67's have a valence panel that matches the body color as opposed to an all chrome bumper on the 68. interiors on both models are very different as well. ****

Facts: 8-cylinder, 90° V8, 4.30 x 4.06" b&s, 472 ci, overhead valves, push rod actuated, 10.5:1 compression ratio, Rochester Quadra-Jet #7028230 4 bbl carburetor, 375BHP @ 4400 rpm), Turbo Hydra-Matic, 2.94:1 rear axle ratio (optional 3.21:1, "75" = 3.77:1) ("Eldorado" = same but mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, coil springs and tube shock absorbers, front independent coil-springs with tube shock absorbers ("Eldorado" = live rear axle with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), full perimeter frame ("Eldorado" = integral boxed perimeter, "75" = backbone type), 129.5" wheel base, ("Eldorado" = 120", "75" = 149.8"), 225" over-all length ("Eldorado" = 221", "75" = 237.3-244.5"), 62.5" track front and rear ("Eldorado" = 63" in front, 63.5" in rear, "75" = 62.5-63" front and rear), 8.00x15 tires, "Eldorado" = 9.00x15, weight: 4390-4725 lbs ("Eldorado" = 4500-4630 lbs, "60S" = 4615-4770 lbs, "75" = 5055-5436 lbs), 0-80 in 15.5 seconds. ("Eldorado" = 15.3 seconds.), top speed 120-125 mph ("Eldorado" = 125-130 mph), 12-15 mpg ("Eldorado" = 12-14 mpg, "75" = 10-16 mpg). "Calais", "De Ville" and "Fleetwood" series; 11 models, 14th in U.S. car sales ranking, Calais HT Sedan deleted;

Easy ID: Similar grille slant to 1967 but much finer grille mesh; side marker lights incorporated on side of tail-light housings (circular marker light on rear fender of Eldorado models).

[ images to come ]

(body styles): (see also Eldorado section, below); Notes, CLCA 30th anniversary issue, p.38; new 472ci motor, side illumination mandatory, hidden windshield wipers, modified instrument panel; "De Ville" convertible, V8M/5, pp.56-59; Eldorado Biarritz Towne Car [show car] (C&D card set); introduction to Coupe de Ville and Fleetwood Eldorado in C&D 12/67, p.39 (???). story of De Ville convertible in France, V8, #5, pp.56-59.

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

Calais coupe

1968 Calais hardtop sedan

1968 Coupe de Ville

De Ville Series

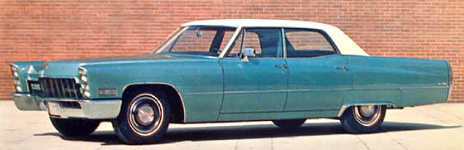

1968 Sedan de Ville



1968 De Ville hardtop sedan





1968 De Ville convertible




Fleetwood Series

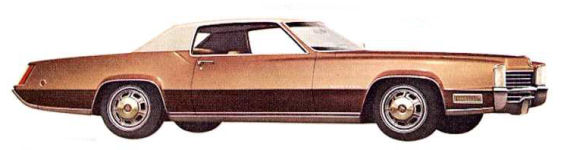

1968 Fleetwood Eldorado coupe




1968 Fleetwood "Sixty Special"

1968 Fleetwood Brougham

1968 Fleetwood sedan and Fleetwood limousine



Trivia: Of all the 1968 Sedan Devilles that were produced, it has been reported by one Database user that only 4% of them were manufactured with the special order bucket seats.

[to read about a fine 1968 Cadillac, check out this site !!!]




1969

Facts: 8-cylinder, 90° V8, 4.30 x 4.06" b&s, 472 ci, overhead valves, push rod actuated, 10.5:1 compression ratio, Rochester Quadra-Jet #7028230 4 bbl carburetor, 375BHP @ 4400 rpm), Turbo Hydra-Matic, 2.94:1 rear axle ratio (optional 3.21:1, "75" = 3.77:1) ("Eldorado" = same but mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, coil springs and tube shock absorbers, front independent coil-springs with tube shock absorbers ("Eldorado" = live rear axle with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), full perimeter frame ("Eldorado" = integral boxed perimeter, "75" = backbone type), 129.5" wheel base, ("Eldorado" = 120", "75" = 149.8"), 225" over-all length ("Eldorado" = 221", "75" = 237.3-244.5"), 62.5" track front and rear ("Eldorado" = 63" in front, 63.5" in rear, "75" = 62.5-63" front and rear), 8.00x15 tires, "Eldorado" = 9.00x15, weight: 4390-4725 lbs ("Eldorado" = 4500-4630 lbs, "60S" = 4615-4770 lbs, "75" = 5055-5436 lbs), 0-80 in 15.5 seconds. ("Eldorado" = 15.3 seconds.), top speed 120-125 mph ("Eldorado" = 125-130 mph), 12-15 mpg ("Eldorado" = 12-14 mpg, "75" = 10-16 mpg). First auto industry closed cooling system; it returned to the radiator any engine coolant that had overflowed because of momentary overheating. 11 models, 12th in U.S. car sales ranking;

Easy ID: New, flat grille, not spread out across entire front of car as in 1967-68;  new tail lights (the easiest distinguishing feature on these cars)


(body styles built): (see also Eldorado section, below); Calais Sedan 6825; Calais Coupe 5600; Sedan de Ville (pillared) 7890; Sedan de Ville (Hardtop) 72958; Coupe de Ville 65755; DeVille Convertible 16445; Eldorado 23333; Fleetwood 60 Special 2545; Fleetwood Brougham 17300; 75 9 Passenger Sedan 880; 75 9 Passenger limousine 1156. De Ville 2-door convertible (C&D [BOLD] card set); "75" limousine (CCI [BOLD]], 27:2)

Models[7/2000:  photo links have changed please go to this page]

Calais Series

1969 Calais coupe

1969 Calais hardtop sedan

De Ville Series

1969 Coupe de Ville

1969 Sedan de Ville

1969 De Ville hardtop sedan

1969 De Ville convertible




Fleetwood Series

1969 Fleetwood Eldorado coupe

1969 Fleetwood "Sixty Special"

1969 Fleetwood Brougham

1969 Fleetwood sedan and Fleetwood limousine



Quip: [Q:] "In what car would you like to drive from New York to San Francisco?" [A:] "In a Cadillac with climate control, what else?" - Phil Walters, 1969. [quip supplied by Ruben Baeten, Netherlands].




1970

Facts: 8-cylinder, 90° V8, 4.30 x 4.06" b&s, 472 cubic inches ("Eldorado" = 4.30 x 4.30", 500 ci), overhead valves, push rod actuated, 10.5:1 compression ratio ("Eldorado" = 10.0:1), Rochester Quadra-Jet #7028230 4 bbl carburetor ("Eldorado" = Rochester Quadra-Jet @4MV), 375BHP @ 4400 rpm ("Eldorado" = 400 BHP), Turbo Hydra-Matic, 2.94:1 rear axle ratio (optional 3.21:1, "75" = 3.77:1) ("Eldorado" = same but mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, coil springs and tube shock absorbers, front independent coil-springs with tube shock absorbers ("Eldorado" = live rear axle with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), full perimeter frame ("Eldorado" = integral boxed perimeter, "75" = backbone type), 129.5" wheel base, ("Eldorado" = 120", "75" = 149.8"), 225" over-all length ("Eldorado" = 221", "75" = 237.3-244.5"), 62.5" track front and rear ("Eldorado" = 63" in front, 63.5" in rear, "75" = 62.5-63" front and rear), 8.00x15 tires, "Eldorado" = 9.00x15, weight: 4390-4725 lbs ("Eldorado" = 4500-4630 lbs, "60S" = 4615-4770 lbs, "75" = 5055-5436 lbs), 0-80 in 15.5 seconds. ("Eldorado" = 15.3 seconds.), top speed 120-125 mph ("Eldorado" = 125-130 mph), 12-15 mpg ("Eldorado" = 12-14 mpg, "75" = 10-16 mpg). "Calais", "De Ville" and "Fleetwood" series; 11 models, 13th in U.S. car sales ranking;

The condensed specs, below, are from a 1970 item of sales literature:

ENGINE: Eight-cylinder, 375-HP overhead 90 degrees V-type: bore 4.30, stroke 4.06, displacement 472 cu. in. Max. torque 525 ft.-lbs. Engine mounted in rubber at three points. Compression ratio 10 to 1.

NEW: ELDORADO: V-8 ENGINE: Displacement, 8.2 litters. 400-HP. Torque, 550 ft.-lbs. Compression ratio, 10 to 1. Bore, 4.30. Stroke, 4.304

PISTONS: Aluminum alloy, slipper-type cam, ground to reduce friction surfaces and permit nesting between crankshaft counterweights.

CARBURETOR: Quadrajet four-barrel downdraft with equalized manifold, mechanical fuel pump, dry-type air filter, improved automatic choke. Controlled combustion system reduces hydrocarbons in exhaust.

LUBRICATION: Full-pressure. Full-flow oil filter.

ELECTRICAL SYSTEM: 12-volt. 15-plate battery. High-capacity, 42-amp. generator (55-amp., air conditioned cars).

GASOLINE TANK CAPACITY: Approximately 26 gallons. Eldorado approximately 24.

TURBO HYDRA-MATIC: Fully automatic, torque-converter type with fixed stator. Converter multiplies engine torque for increased driving thrust to drive wheels during acceleration in any gear (low, intermediate or high).

REAR AXLE: New, heavier, stronger rear axle and differential. Ratio is 2.93 to 1 (3.07 to 1 on Eldorado), 3.15 to 1 axle ratio on Seventy-Five models. Available (except Eldorado) is the Controlled Differential, which directs power to the rear wheel having better traction.

FRONT SUSPENSION: New integral steering knuckle for greater dependability and longer life. Independent, helical-coil-type springs. Rubber-mounted strut rods and rubber bushings absorb impacts and isolate road noise. (Torsion bar suspension on Eldorado.)

REAR SUSPENSION: Four-link drive. Rear springs are helical-coil-type. Rubber bushings for quieter, softer ride. (Single-leaf springs with two horizontal and two vertical shock absorbers on Eldorado.)

BRAKES: Cadillac power brakes with self-adjusting feature; composite finned rear drums; disc front. Split hydraulic master cylinder provides for independent operation of front and rear brakes.

PARKING BRAKE: True auxiliary brake ... will not lock in position with engine running and car in gear ... can be operated as a foot emergency brake while car is in motion. Automatically releases when transmission is in drive with engine running.

STEERING: Cadillac variable-ratio power steering is standard equipment (fixed-ratio on Seventy-Five models). Overall steering ratio of 16.6 to 1 (except 18.2 to 1 on Seventy-Five models and 16.3 to 1 on Eldorado). 38.5' turning angle provides fast response and short turning diameter.

FRAME: Perimeter frame is boxed in its entire length. Eldorado has a frame especially designed for its front-wheel drive and front and rear suspension systems.

TIRES: Low-pressure, size L78 x 15, bias-belted, fiberglass, tubeless, on all models. Black sidewalls, standard; white sidewalls optional, at extra cost

CORNERING LIGHTS: On the side of front fenders, activated by directional signal lever when headlamp switch is on. They project a beam of light from the side of the car, thus illuminating roadside and road signs for convenience at night.

TREAD: Front and rear, 63" (Eldorado, 63.5" front 63" rear).

WHEELBASE: 129.5" (Fleetwood Sixty Special and Brougham, 133", Fleetwood Seventy-Five 149.8", Eldorado 120").

OVERALL LENGTH: 225" (Fleetwood Sixty Special and Brougham 228.5", Fleetwood Seventy-Five, 245.3", Eldorado, 221")

ADDITIONAL BODY COLORS not shown on cars illustrated include: Patina Silver, Cotillion White, Phantom Gray, San Mateo Red, Sable Black, Glenmore Green, Sauterne, Dark Walnut, Monarch Burgundy, Regency Bronze Firemist and Chateau Mauve Firemist.

NOTE: Richly textured vinyl is provided in certain areas of leather-trimmed Fleetwood and De Ville models.

Easy ID: Similar grille to 1969 model but unmistakable vertical "wings" on leading edge of front fenders; new tail lights (together with the "wings", this feature is the easiest way to distinguish the 1970 cars)


(body styles): (see also Eldorado section, below); De Ville 2-door convertible (C&D card set); Eldorado 2-door Coupe (C&D card set); "Blood Sweat and Tears" special stretched limousine (special issue CCIX, p.24).

Models[7/2000:  photo links have changed please go to this page]

Calais Series

1970 Calais Coupe

1970 Calais hardtop sedan

De Ville Series

1970 Coupe de Ville

1970 Sedan de Ville

1970 De Ville hardtop sedan

1970 De Ville convertible

Fleetwood Series

1970 Fleetwood Eldorado coupe

1970 Fleetwood "Sixty Special"

1970 Fleetwood Brougham

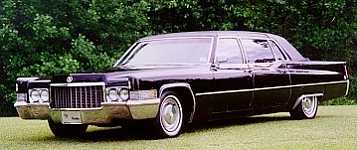

1970 Fleetwood sedan and Fleetwood limousine


Late extra(10/2000): The compiler of The (new) Cadillac Database© admits to being less familiar with Cadillac models from 1970 and later. Many of you have asked for more information and photos regarding these later models.  I am pleased to inform you that there are other sites on the Web devoted also to Cadillac history and particularly to what I call "modern" Cadillacs, i.e. those built after 1970.  So, for additional, pertinent information about Cadillacs from 1970 and later, please visit these excellent, informative sites:

John Barach's excellent Cadillac history pages.
Al Betker's equally superb "Maximum Torque Specialties"



1971

Facts: Standard car 472 ci engine, 7.7 liter V8 with Rochester four-barrel Quadrajet, Model 4MV; 130 inch wheel base, weight 4685 lbs, base price $6264. Eldorado engine: 8-cylinder, 90° V8, 4.30 x 4.30" b&s, 500 ci, overhead valves, push rod actuated, 9.00:1 compression ratio, Rochester 4 bbl carburetor, 365BHP @ 4400 rpm, Turbo Hydra-Matic mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), integral boxed perimeter, 126.3" wheel base, over-all length = 223", 62.5" track front and rear 5", L78x15 tires, weight: 4675-5167 lbs, 0-80 in 19 seconds., top speed 115-120 mph, 10-13 mpg. "Calais", "De Ville" and "Fleetwood" series; 9 models, 12th in U.S. car sales ranking, pillared Sedan de Ville and De Ville convertible deleted; the new computerized anti-skid brake system (ABS) called "Track Master" was introduced; simultaneous with the Chrysler Imperial system. Options in 1971 included a remote control trunk lock for $58, power door locks for $71, six-way power seats on some models for $92, Cruise-Control for $95, a vinyl roof covering on some models for $156, complementary leather upholstery for $174, Cadillac's very own tape player for $416 (!), and "Automatic Climate Control" [a sophisticated heating/air-conditioning system] for $537.

Easy ID: again, vertical 1941-type "wings" between dual headlight units, vertical front bumper guards, sun-roof option, 1971 headlights further apart

[ images to come ]

(body styles): "75" limousine (CCI, 27:2) 4-door Sedan de Ville (C&D card set); Eldorado 2-door convertible (C&D card set);

Trivia: Labor disputes curtailed this year's production totaling 188,537 units. For the first time, Cadillac built some of its cars outside Detroit. In 1971, some de Ville models were built at the GM Assembly Division factory at Linden in New Jersey.

Models[7/2000:  photo links have changed please go to this page]

Calais Series

1971 Calais coupe

1971 Calais hardtop sedan

De Ville Series

1971 Coupe de Ville

1971 De Ville hardtop sedan

Fleetwood Series

1971 Fleetwood Eldorado coupe

1971 Fleetwood Eldorado convertible

1971 Fleetwood Brougham

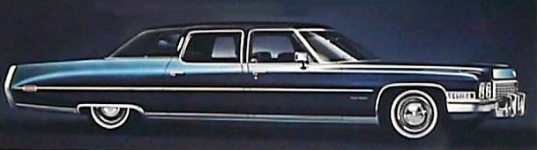

1971 Fleetwood sedan and Fleetwood limousine

Total 1971 models 188537




1971-1973

Side molding with rear marker light used up to 1973;




1972

Facts: Eldorado engine: 8-cylinder, 90° V8, 4.30 x 4.30" b&s, 500 ci, overhead valves, push rod actuated, 8.5:1 compression ratio, Rochester 4 bbl carburetor, 365BHP @ 4400 rpm, Turbo Hydra-Matic mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), integral boxed perimeter, 126.3" wheel base, over-all length = 223", 62.5" track front and rear 5", L78x15 tires, weight: 4675-5167 lbs, 0-80 in 19 seconds., top speed 115-120 mph, 10-13 mpg. "Calais", "De Ville" and "Fleetwood" series; 9 models, 13th in U.S. car sales ranking, "60S" Brougham renamed Fleetwood Brougham ; ID vertical 1941-type "wings" on parking light unit between dual headlight assembly;

Easy ID:



(body styles): (see also Eldorado section, below); 4-door Sedan de Ville (C&D card set); Eldorado 2-door convertible (C&D card set); Fleetwood 75 Sedan and Limousine (C&D card set)

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

1972 Calais coupe

1972 Calais hardtop sedan

De Ville Series

1972 Coupe de Ville

1972 De Ville hardtop sedan

Fleetwood Series

1972 Fleetwood Eldorado coupe

1972 Fleetwood Eldorado convertible

1972 Fleetwood Brougham

1972 Fleetwood sedan and Fleetwood limousine





1973

Facts: Eldorado engine: 8-cylinder, 90° V8, 4.30 x 4.30" b&s, 500 ci, overhead valves, push rod actuated, 8.5:1 compression ratio, Rochester 4 bbl carburetor, 235BHP @ 4400 rpm, Turbo Hydra-Matic mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), integral boxed perimeter, 126.3" wheel base, over-all length = 223", 62.5" track front and rear 5", L78x15 tires, weight: 4675-5167 lbs, 0-80 in 19 secs., top speed 115-120 mph, 10-13 mpg. "Calais", "De Ville" and "Fleetwood" series; 9 models, 13th in U.S. car sales ranking; ID rectangular parking light between dual headlight assembly; additional emission control, re-inforced chassis, one-piece grille and front bumper moves back on impact; new theft-deterrent system sounded horn and flashed headlamps under certain conditions.

Easy ID:

[ images to come ]

(body styles): (see also Eldorado section, below); Indianapolis Pace Car, SIA17, p.29, C&D card set

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

1973 Calais coupe

1973 Calais hardtop sedan

De Ville Series

1973 Coupe de Ville

1973 De Ville hardtop sedan

Fleetwood Series

1973 Fleetwood Eldorado coupe

1973 Fleetwood Eldorado convertible

[to see an exceptional 1973 Eldorado convertible, check out this site!]

1973 Fleetwood Brougham

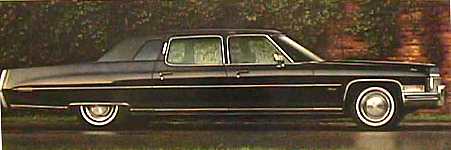

1973 Fleetwood sedan and Fleetwood limousine





1974

Facts: Eldorado engine: 8-cylinder, 90° V8, 4.30 x 4.30" b&s, 500 ci, overhead valves, push rod actuated, 8.25:1 compression ratio, Rochester 4 bbl carburetor, 210BHP @ 4400 rpm, Turbo Hydra-Matic mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), integral boxed perimeter, 126.3" wheel base, over-all length = 225", 62.5" track front and rear 5", L78x15 tires, weight: 4675-5167 lbs, 0-80 in 19 secs., top speed 115-120 mph, 10-13 mpg. "Calais", "De Ville" and "Fleetwood" series; 9 models, 13th in U.S. car sales ranking; along with Buick and Oldsmobile, Cadillac pioneered the air-bag restraint system in case of frontal collision.

Easy ID:




(body styles): (see also Eldorado section, below); custom stretch (CCI, 30:7; story of surviving Eldo convertible in France, V8, #2, pp.20-25.

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

1974 Calais coupe

1974 Calais hardtop sedan

De Ville Series

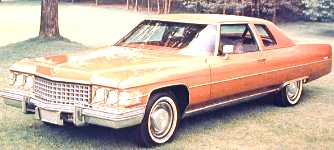

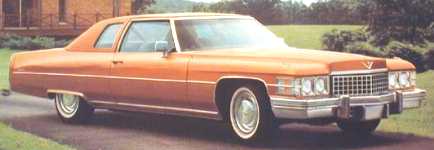

1974 Coupe de Ville





1974 De Ville hardtop sedan

Fleetwood Series

1974 Fleetwood Eldorado coupe





1974 Fleetwood Eldorado convertible

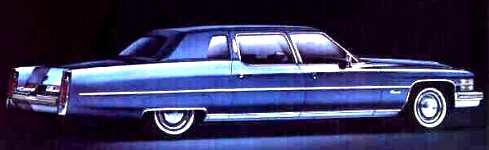

1974 Fleetwood Brougham




1974 Fleetwood sedan and Fleetwood limousine

There is an interesting article in French on the 1974 Cadillac Talisman, in V8 Magazine #33 for Feb., Mar., Apr. 1999, pp.38-41.




1975


Facts: Eldorado engine: 8-cylinder, 90° V8, 4.30 x 4.30" b&s, 500 ci, overhead valves, push rod actuated, 8.25:1 compression ratio, Rochester 4 bbl carburetor, 190BHP @ 4400 rpm, Turbo Hydra-Matic mounted longitudinally in transfer case, 3.21:1 final drive ratio), live rear axle suspension, with single leaf longitudinal semi-elliptic springs, independent front suspension via torsion bars and A-arms, tube chock absorbers), integral boxed perimeter, 126.3" wheel base, over-all length = 225", 62.5" track front and rear 5", LR78x15 tires, weight: 4675-5167 lbs, 0-80 in 19 secs., top speed 115-120 mph, 10-13 mpg. Seville: engine: 8-cylinder, 90° V8, 4.06 x 3.39" b&s, 350 ci, overhead valves, push rod actuated, 8.0:1 compression ratio, electronic fuel injection, 180BHP @ 4400 rpm, Turbo Hydra-Matic, 2.56:1 final drive ratio), live rear axle self-leveling suspension, with semi-elliptic springs and tube shock absorbers, independent front suspension via torsion bars and A-arms, tube shock absorbers), unit body and chassis with sub frames, 113.9" wheel base, over-all length = 204", 61.3" track front and 59" rear, GR78x15 tires, weight: 4180-4230 lbs, 0-60 in 11.5 secs., top speed 115 mph, 15-17 mpg. "Calais", "De Ville", "Fleetwood" and "Seville" series; 9 (10 ???) models, 13th in U.S. car sales ranking; Seville arrived mid-year; first domestic manufacturer to use electronic fuel injection (EFI). In the Seville models the new Delco Freedom battery dispensed with having to top up battery electrolyte; it featured a built-in charge indicator.

Easy ID: Plain turn signal/cornering lamp assembly (no ribs as in 1976).  Grille "egg-crate" has 18 "boxes" per row; there are no dividers in the grille.




(body styles): (see also Eldorado and Seville sections, below); small rear -view photo of custom pick-up, CLCA 1981, p.28; special sedan for "3 Dog Night" (special issue CCIX, p.24)

Models: [7/2000:  photo links have changed please go to this page]

Calais Series

1975 Calais coupe

1975 Calais hardtop sedan

De Ville Series

1975 Coupe de Ville

1975 De Ville hardtop sedan

Fleetwood Series

1975 Fleetwood Eldorado coupe

1975 Fleetwood Eldorado convertible

1975 Fleetwood Brougham

1975 Fleetwood sedan and Fleetwood limousine





Return to The (New) Cadillac Database© Index Page
or select preferred years, below



1902-1904 1905-1912 1913-1921 1922-1931 1932-1937

1938-1945

1946-1950 1951-1955 1956-1965 1966-1975 1976-1985

1986-up




© 1996, Yann Saunders and the Cadillac-LaSalle Club, Inc.
[ Background image:  1970 Cadillac De Ville coupe ]
