La Salle Miscellaneous Insignia

I guess that growing automobile traffic and related safety issues had something to do with the demise of the hood ornament.  Indeed, who would have enjoyed being impaled on the sharply-pointed beak of a Heron hood mascot or on the speeding bullet of the one mounted atop the 1940 La Salle ?!?!



Hood mascots

1. A cast figurine representing Sieur Rene Robert Cavelier De La Salle, the French explorer, who gave his name to Cadillac's lesser marque, was used on the early La Salle models, up to 1932. That mascot, like the Cadillac trumpet tooter, was available from accessory houses in the late twenties and early thirties. La Salle was an adventurer and explorer of the Mississippi; the mascot shows him standing beside a campfire with the tools of his adventuresome trade, including an axe and a broken canoe paddle, from the days when he regularly got lost in Canada's frozen north while looking for a direct route south, to the great Missouri and Mississippi rivers.  The statuette is marked Cadillac Motor Car Co. Des Pat. 1927;   it is made of nickel-plated pewter. This is a patented design by E.E. Burr (#74168 of January 3, 1928).




Left and right you can make out the camp fire;  center (from rear), the broken canoe paddle





2. From 1930 to 1932 the Cadillac "Heron" ornament was commonly use. That long, slender neck was extremely delicate. Finding one today in fine condition is rare; often you will see necks that are bent or repaired.



Th
is delicate Heron mascot used on both Cadillac and La Salle
cars  from 1930 to 1932 (the one in the center, has been repaired)





3. From 1933 to 1940 the La Salle models featured a  torpedo hood mascot (also known as the bird in flight or the bullet).  It was perfectly suited to the modern, flowing styling of the car.



The 1933 La Salle torpedo was part #877650 and cost $10

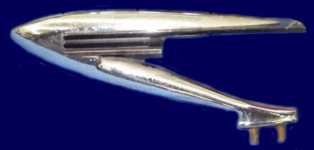

4. From 1934 to 1936, the torpedo remained basically unchanged in its general shape, although minor modifications were made to the base. The Master Parts List (MPL) gives the following part number for the years 1934 to 1936



Part  #1405356  cost $13.75





5. 1937 La Salle models had their own torpedo although it remained very similar in design to the torpedo of the previous three years. The Part number is : 1420945.



Part  #1420945  cost $13.75
[ better image needed ]





6.  In 1938 again, some minor changes were wrought to the general design and the torpedo ornament again got a different number: #1425131



Part  #1425131 cost $13.75
[
photo,  © 1999, Yann Saunders ]

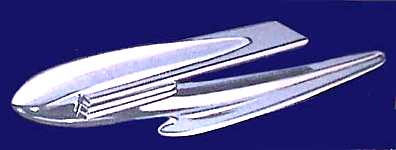

7. The final La Salles for 1939 and 1940 bore a similar mascot to previous years but its aerodynamic properties were even more pronounced. The part number is: 1433097



Part  #1405356  cost $10.25
[ P
hoto, La Salle  product catalog ]




Hood, radiator grille and trunk emblems

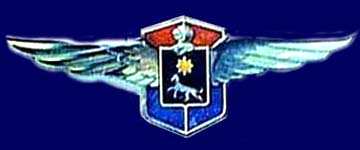

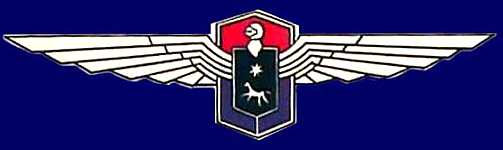

These two artist's views show the early, winged La Salle emblem;
the crest is that of René Cavelier, Sieur de La Salle, a French explorer









1927-28 grille badge

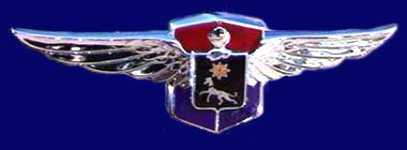

Radiator grille badge, 1932

Radiator grille badge, 1933

Trunk emblem off a 1933 La Salle

I believe this unidentified radiator badge
(in poor condition) is from the thirties (1934-35???)

Grille emblem from a 1934 model

Radiator grille badge, 1935-36 ???

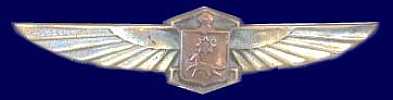

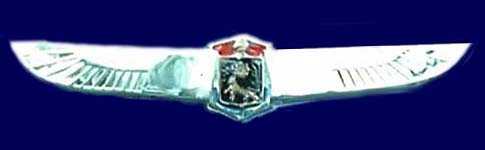

1937 LaSalle grille badge (in need of restoration)

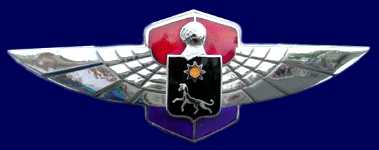

Radiator grille badge, 1940

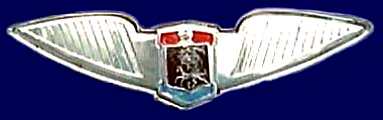

1940 La Salle trunk emblem
[the 1939 Cadillac trunk emblem was similar, but featured a Cadillac crest]





Wheel cover emblems



1 lsmissng.JPG (50421 bytes)    2 lsmissng.JPG (50421 bytes)   3 lsmissng.JPG (50421 bytes)
[ missing some images:  1927, 1928, 1929]

4 WCAP29LS.JPG (3305 bytes)   5 WC30LAS.JPG (3990 bytes)   6 WCAP32LS.JPG (4933 bytes)   7 WC32LS.JPG (4973 bytes)
4.  1929 La Salle hub cap;  5.  1930 La Salle hub cap in less than perfect condition;
6.  Beautiful, original 1931 hub cap;  7.   1932 La Salle hub cap in equally beautiful condition

Wheel cover medallion for 1930 La Salle

8 WCAP33LS.JPG (4324 bytes)  9 WC34LS.JPG (3278 bytes) 10 WC34SPAR.JPG (3727 bytes)
8.  1933;  9.  1934, with name in block letters;  10. Spare wheel hub cap for 1934 La Salle
[ Photo #9: © 2002,  J. Scott Harris ]

11 WC36LS.JPG (2577 bytes) 12 wcap38ls.jpg (5022 bytes) 13 WCLS40.JPG (3705 bytes)
11.  1936, with name in script (this one badly in need of chrome!);
  12.  1937-39 [???] (this is the full cover version, seen on a 1938 model
13.  1940 (looks the same)





Horn Buttons



1936, 1937, 1938 (?)  and 1940 La Salle horn buttons
[ Photo of the 1940  button, courtesy Frank De Cou ]

Close up of crest on
1940 LaSalle horn button







(résumé en français)

Cette page est consacrée aux emblèmes et figurines de proue que l'on peut admirer sur les automobiles de la marque La Salle, fabriquées par la firme Cadillac de 1927 à 1940.
