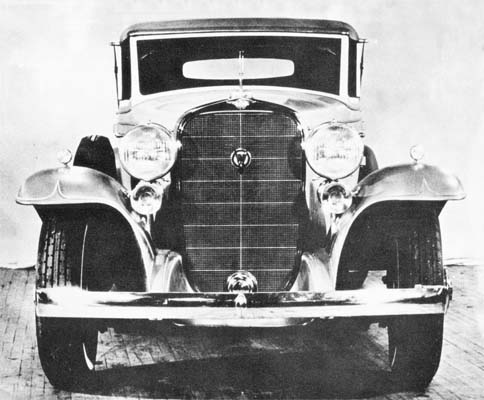

Front clip, 1932
[ grille badge says "V16" ]
V-16 type 452-B on display during a Motor Show

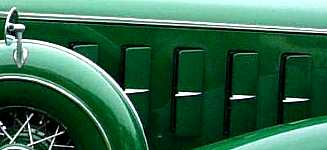

Two detailed views of the superb vee-sixteen cars of 1932
[ These detail photos: courtesy "Jim", a great Cadillac enthusiast ]

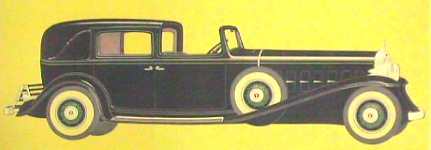

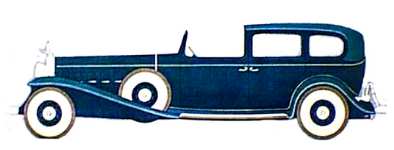

Two different views of luxurious 1932 town car styles; both of these appeared in colorful ads of the time
In 1932, production of the V16 dropped dramatically in comparison with the banner years of 1930-31. In the second year of production, the number of super-cars built - and named the Series 452-B models - was less than 10% of those built in the first two years, i.e. the Series 452-452A cars.
The effects of the depression were starting to be felt, even in the stratosphere of the very rich ...or they just did not want the multitude of needy Americans to know that they, the rich, still had wealth sometimes unlimited. The superb product portfolio spoke thus of the 1932 models:
The glass of fashion and the mould of form,
The observ'd of all observers
Whereas Fleetwood had dressed around 98% of the sixteen-cylinder chassis built in 1930-31, in an effort to reduce production costs Fisher was assigned the task of creating the bodywork for almost one quarter of the 1932 V-16 production. In my opinion, the Fisher-bodied V-16s of 1932 are no less breathtaking to look at than their Fleetwood counterparts. They are equally valuable too.
In my opinion, the sixteens of 1932, whether with Fisher or Fleetwood coachwork, are the most beautiful and desirable of the entire V-16 line. They number only 300, so if you want one, you had better hurry up. Buy yours now!
If any user(s) have one (or more) of the cars listed here and would like me to show a photo of it in the V-16 section of The (New) Cadillac Database©, please drop me an e-Mail:
The numbers of each body style are listed below, by wheel base and coach builder, in ascending order of rarity, i.e. the most prolific styles being shown first.
Special thanks to Z. Taylor Vinson of Washington, DC, for allowing me to copy, for your enjoyment, his breathtaking 1932 V16 product folder. Most of the artist's renderings in color, below are from the ten folders included in that prestige portfolio of Fleetwood creations for 1932. The latter portfolio is, in the opinion of many collectors, including me, one of the most beautiful pieces of automobile literature on which a car lover could ever wish to feast his eyes. Each folder measures an astounding 11½ x 15 inches; all are adorned in the art deco style. These folders come in a large presentation box measuring 12 x 16 inches marked Fleetwood Custom Coachwork; the box, and each folder inside, carries on the cover a circular medallion done in blue tones showing the various models in company with their obviously wealthy owners; each medallion is surrounded by the Fleetwood wreath. An 8-page introductory brochure provides the general specifications and some of the common features of that year's sixteens.
Should you wish to acquire this Fleetwood marketing set today, you must be prepared to pay upwards of $1000 for it. The individual folders may occasionally be found separately; currently [1999] they command about $100 each.
Production numbers
of the 1932 Cadillac V-16
[in ascending order of rarity]
Style Number1 Body Type Units Built Notes Standard Fleetwood bodies

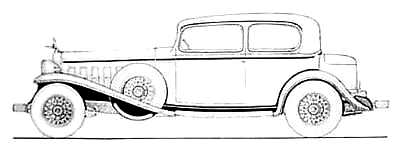

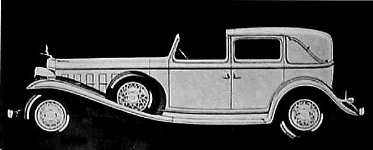

[149" wheel base V-16 chassis]32-16-213 [5175] 5-pass limousine [$5445] 49 Bodies #1-36 and #38-502 32-16-212 [5175-S] 7-pass. sedan [$5245] 47 Bodies #1-30 and #32-482 32-16-209 [5130-S] 5-pass. sedan [$5095] 29 Bodies #1-29 32-16-222 [5181] 5-pass town coupe [$5095] 24 Bodies #1-22, 51 and 522 32-16-226 [5191] 7-pass. limousine brougham [$5945] 7 Bodies #1-5, 8 and 92 32-16-225 [5112] 5-pass town car [$5795] 4 Bodies #1-4 32-16-227 [5125] 7-pass. town car [$5945] 2 Bodies #1 and 32 Sub-Total
162
Style Number Body Type Units Built Notes Standard Fisher bodies

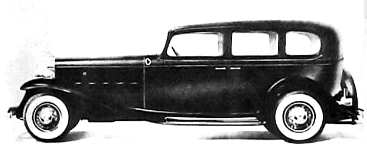

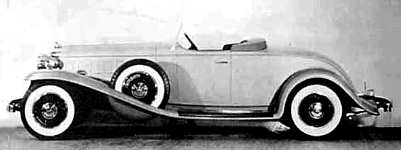

[143" wheel base V-16 chassis]32-16-159 5-pass standard sedan [$4595] 56 Bodies #1-602 32-16-178 2-pass. coupe [$4495] 16 Bodies #1-15 and 352 32-16-168 2-pass. convertible coupe [$4645] 14 Bodies #1 and 3-152 32-16-155 2-pass roadster [$4595] 3 Bodies #1-3 Sub-Total
89
Style Number Body Type Units Built Notes Special Fleetwood bodies

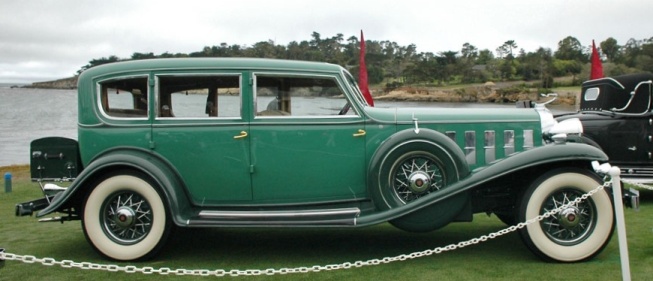

[149" wheel base V-16 chassis]5131 5-pass. limousine ("Madame X") [$5945] 5 Bodies #1-5 5155 5-pass. limousine ("Madame X") [circa $6100] 4 Bodies #1-4 5130-FL 5-pass. limousine [circa $5300] 2 Bodies #2 and 72 5131-S 5-pass sedan ("Madame X") [circa $5800] 2 Bodies #1 and 2 5125-C 7-pass. town landaulet [circa $6500] 1 Body #1 5125-Q 7-pass. town car with quarter windows [circa $6200] 1 Body #1 5129 5-pass. limousine [circa $5400] 1 Body #1 5140-B 5-pass. limousine with cloth top [circa $6200] 1 Body #1 5155-C 5-pass. landaulet ("Madame X") [circa $6600] 1 Body #1 5156-C 5-pass. landaulet [circa $6700] 1 Body #1 5165 7-pass. limousine ("Madame X") [circa $6800] 1 Body #22 5175-FL 7-pass. limousine [circa $5700] 1 Body #42 5175-H4 7-pass. limousine with 4" extra head room [circa $5900] 1 Body #37 in another series2 5185 5-pass. convertible Victoria [circa $6500] 1 Body #82 Sub-Total
23
Style Number Body Type Units Built Notes Standard Fisher bodies

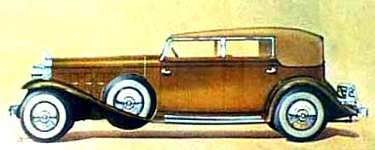

[149" wheel base V-16 chassis]32-16-273 5-pass all-weather phaeton [$5195] 13 Included in range #1-162 32-16-280 5-pass. special phaeton [$4795] 3 Bodies #1, 3 and 42 32-16-279 5-pass. dual-cowl sport phaeton [$4945] 2 Bodies #1 and 2 32-16-256 5-pass standard phaeton [$4695] 1 Body #1 Sub-Total
19
Style Number Body Type Units Built Notes Special Fisher bodies
[149" wheel base V-16 chassis]32-16-252 5-pass town sedan [circa $4700] 2 Bodies #1 and 2 32-16-259 5-pass. factory demo sedan [circa $4500] 1 Body #31 in another series2 32-16-262 7-pass. sedan (factory test car) [circa $4700] 1 Body #57 in another series2 32-16-272 5-pass coupe [circa $4600] 1 Body #1 Sub-Total
5
Style Number Body Type Units Built Notes Special Fleetwood body
[165" wheel base V-16 chassis]5177 8-pass. limousine [circa $6000] 1 Body #1 Sub-Total
1
Style Number Body Type Units Built Notes Remainder of 1933 V-16
Production-- Blank data sheet in factory records3
(possibly a test engine, or a chassis transferred to the 1933 production)1 1933 VIN 5000051 apparently was a carry-over from the 1932 production run; it got a 1933 7-pass limousine body Sub-Total
1
1 Fisher styling codes consist of 1 to 4 digits; however, in the thirties, it was customary for Fisher to include also the
year [in this case "32"] and, sometimes also, the number of cylinders [i.e. "16"]. Therefore, a typical body tag on the 1932
will show the style or job number as "32-16-159". In the section devoted to the Fisher body coding system I have chosen to show only the final 3-4 digits
2 Where a sequence of body numbers is broken; the missing bodies may have been mounted on V8 or V12 chassis
3 The Cadillac Master Parts List shows at least one job #32-16-263 to have been built on the V-16 chassis; that model is not
shown in the preceding table; it is described as an imperial sedan [limousine] for 7 passengers, with metal back, quarter
windows, auxilary seats and a central division glass.
Production
Summary
|
|
Standard Fleetwood bodies [149" wheel base V-16 chassis] |
162 |
Standard Fisher bodies [143" wheel base V-16 chassis] |
89 |
Special Fleetwood bodies [149" wheel base V-16 chassis] |
23 |
Standard Fisher bodies [149" wheel base V-16 chassis] |
19 |
Standard Fisher bodies [149" wheel base V-16 chassis] |
5 |
Special Fleetwood body [165" wheel base V-16 chassis] |
1 |
Sub-Total (cars built) |
299 |
Remainder of 1933 V-16 Production [blank record] |
1 |
Grand Total (engine/chassis) |
300 |
Picture Book
of the 1932 Cadillac V-16
Production
[in ascending order of rarity]
|
|
|
|
|
|
|
|
One of these cars was shown at the
Cadillac national convention, held at the end of 1931; upholstered
|
One of these cars was shown at the
Cadillac national convention, held at the end of 1931; upholstered in Wiese
|
|
|
[2nd image removed at owner's request - 03.18.2013 ]
|
|
|
|
|
|
|
Unique V16 Styles
on the 1932 Series 452-B chassis
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Details
Left: 1932 V16 engine; right: 1932 V16 instrument panel
|
Custom Creations
on the V16 chassis for 1932
The photo, above (with an enlargement, right) - courtesy of the Ford Motor Company - is from the magazine American Heritage for November 1996;
it is said to show the Emperor of Manchuria leaving his Imperial Palace aboard a Ford automobile; don't you think that car looks strangely like the
1:18 scale toy below? Could this be a Ford with a Cadillac V-16 engine, or is it a Cadillac V-16 on which the body of the Emperor's Ford has been mounted?
Described as The State Limousine of Puyi the last emperor of China, this model by Sunstar features a miniature Cadillac V-16 engine. Nothing else about the car resembles a Cadillac other than the general
limousine body shape. The skirted front and rear fenders are more reminiscent of a 1933 model than one from 1932. The front grille looks like it came off a Ford and the front bumpers off a Duesenberg. I certainly
would like to hear from anyone who has seen or heard of the original car from which this 1:18 scale model is derived. We must assume that the toy manufacturer had access to either the car itself or to some
authentic documentation and photos of it. Another source asserts that the car was ordered from GM, in 1932, by the Maunchurian Government; the car was used for the ceremonies during which
Pu Yi became puppet emperor of Manchuria. The hood mascot is the "Dragon Seal" of the emperor

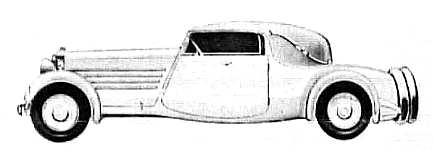

Kellner & Gygax of Biel/Bienne, Switzerland, are said to have built this sporty-elegant convertible Victoria
on the V16 chassis for 1932; however, as no bare chassis were shipped abroad in 1932, it is more likely it was built
in 1932 on the 1930-31 V16 chassis -perhaps on one of the six European tour cars?). The artist's view, above, was
supplied kindly by Harry Wohlgroth, a Swiss friend. Harry found the illustration in the annual Swiss Automobil
Revue for 1932. Any complementary information or photos of this Swiss creation would be greatly appreciated
One V-16 engine (left) from the 1932-33 production run
was used to power this streamlined Clark "AutoTram" shown
at Chicago's "Century of Progress" fair, circa 1933-34
Master Parts List Irregularity?
The MPL shows at least one job #32-16-263 to have been built on the V-16 chassis [not shown in the preceding table]. It is described as an imperial sedan [limousine] for 7 passengers, with metal back, quarter windows, auxiliary seats and central division glass.
The following accessory groups were available in 1932:
#7 was for 5-wheel jobs (spare wheel mounted in the rear): it included a hood ornament, a tire cover, bar (?), hinge-mounted rear-view mirror, license plate frames, tire chains and a handy repair kit. It cost $72.50.
#8 was for 6-wheel jobs (two spare wheels in special fender wells): it included black painted fenders, a hood ornament, two metal spare wheel covers, rear-view mirrors mounted on these covers, license plate frames, tire chains and a handy repair kit. It cost $110.00.
#8A was for 6-wheel jobs (two spare wheels in special fender wells): it included fenders painted any color but black, a hood ornament, two metal spare wheel covers painted to match the fenders, rear-view mirrors mounted on these covers, license plate frames, tire chains and a handy repair kit. It cost $115.00 [i.e. there was a $5 charge to paint the fenders and spare wheel covers!]
|
