Unless otherwise specified all photos and illustrations are from Yann Saunders'
collection of Cadillac photos, advertisements and product catalogs,
reproduced courtesy of the Cadillac Motor Car Division and the Cadillac-LaSalle Club



[This page was put together with great haste, just before leaving on a 6-week trip to Europe; it needs some more editing and there may be a few errors too.   Only the French text is complete at this time]

The majority of illustrations below are from the superb, spiral bound, hard-covered catalog of Cadillac and Cadillac Fleetwood bodies for 1941, published on September 1, 1940.  Some factory photos as well as a few photos of surviving cars are included;  other will be added later, space permitting.

Each car is identified by (a) the "Series" code, namely the first two digits, and (b) the "Style" code, that is the last two digits and - in some cases - a letter suffix.  Some additional descriptions of these double-digit body styling codes  may be found in The (New) Cadillac Database© section entitled "Styling".

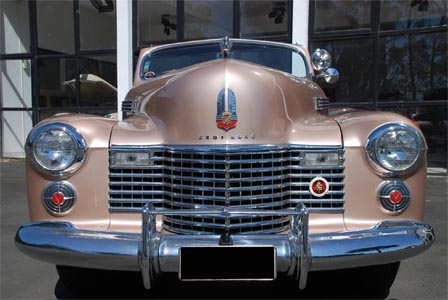

Front and rear clip ID features

Rectangular parking lights at the
upper corners of the grille

(Left) kids from the fifties with a car of the forties

Tail lights and tail-light fin jewel reflectors

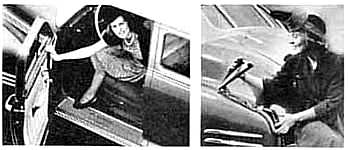

Raising the LH fin allows access to the fuel filler
[ the 1942 models also had these rear ID features ]

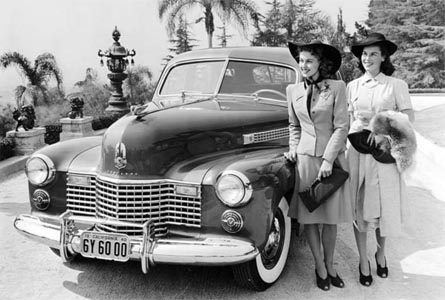

Publicity photos of the time





The Series 61

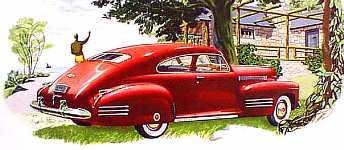

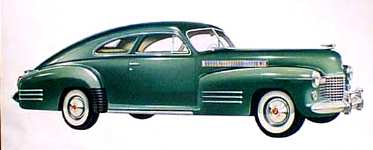

The club coupe for five passengers, style 6127
11812 units built;  cost $1345



Rear passenger compartment
of the Series 61 coupe


A de Luxe version of the Series 61 coupe was available at a cost of $1435; 3015 of these were built

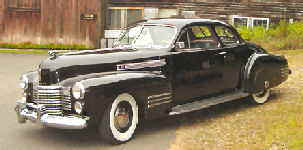

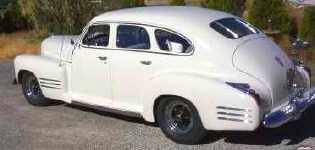

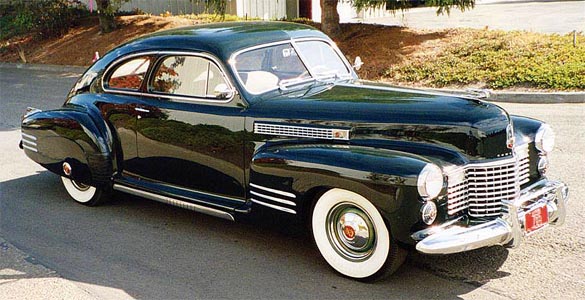

A survivor in excellent shape







Rear seat of the Series 61 sedan.  Despite its
relatively low price, this was one plush car!

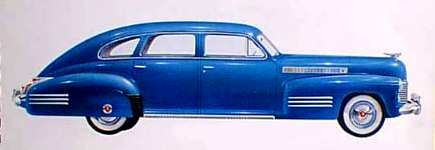

The sedan   for five passengers, style 6109
10925 units built; cost $1445


Sill plate of the 1941 Cadillac models


A De Luxe version of the Series 61 sedan was also available at a cost of $1535; 3495 units were built.
The remainder of the Series 61 production consisted of three bare chassis





The Series 62

The Series 62 series cars were available also in export "format".  These were knocked down and crated [CKD] for assembly in the country of destination.  Ninety-six De Luxe sedans for 5 passengers were thus exported.



The interior of the touring sedan for five passengers,
highlighted with wood trim

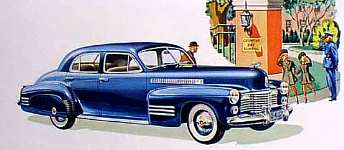

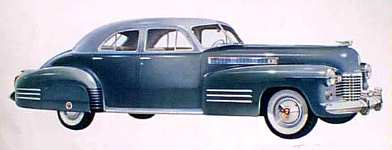

The sedan for five passengers, style 6219
8012 units were built;  cost was $1495


De Luxe version of the Series 62 sedan also was available.  It was termed style #6219D.
Production totaled 7754 units.  The De Luxe sedans cost $1585

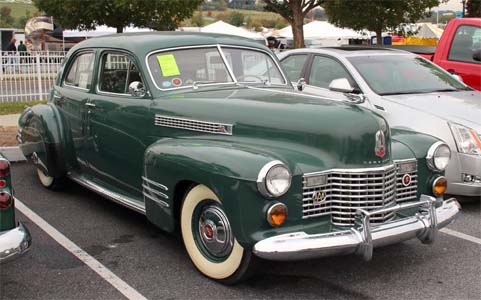

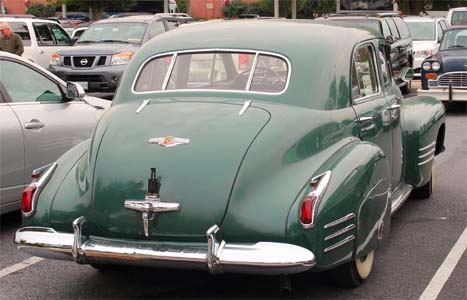

A fine survivor in 2014
[ Photo:  Internet ]

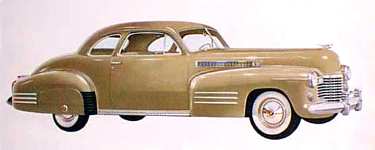

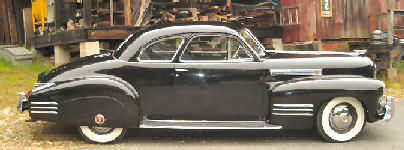

The coupe for four passengers, style 6227
1985 units were built, costing $1420 each



Interior layout of the Series 62 coupe; note
plain seat with pleated seat back


Coupe interior (catalog illustration)

Once again, a De Luxe version of the Series 62 coupe  was available.
It was termed style #6227D.  Production totaled 1900 units; each one cost $1510.

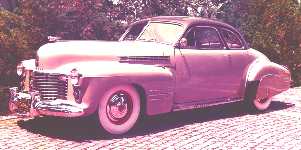

This fine survivor - one of only three surviving 1941 Cadillacs with air-conditioning! -
belongs to enthusiast Doug Houston of Detroit, MI.  The picture was taken at the
Grosse Pointe War Memorial , in Detroit, on the circular entrance drive

Another fine looking survivor; the year 1941 is the most popular among collectors of pre-WW2 Cadillacs

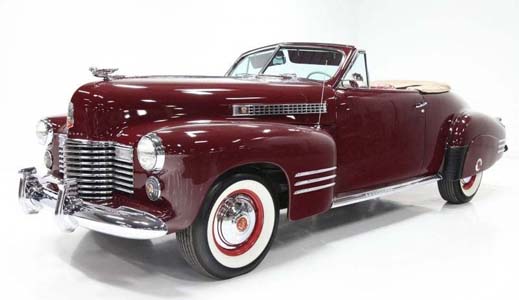

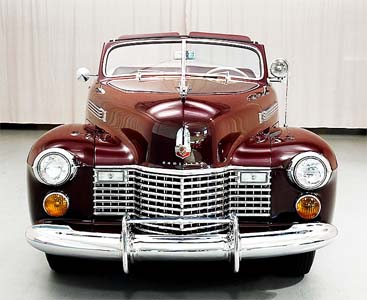

The de luxe convertible coupe, style 6267D
3100 units were built; the cost was $1645

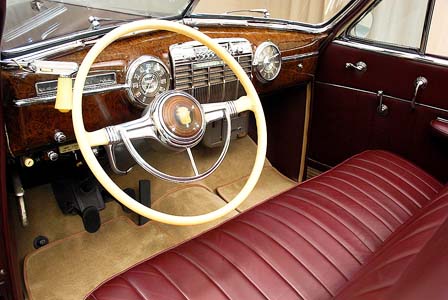

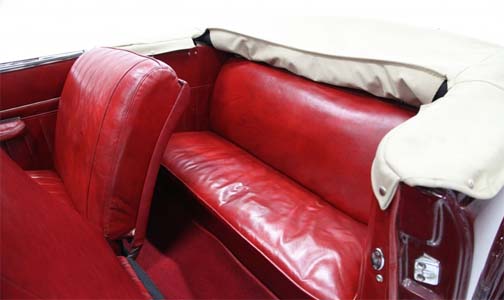

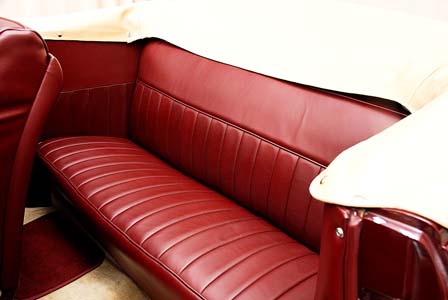

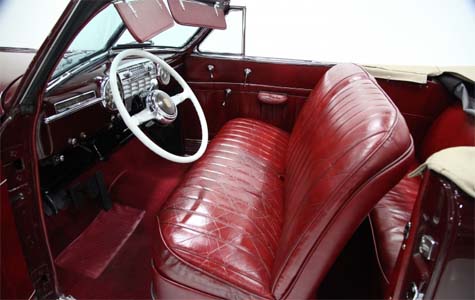

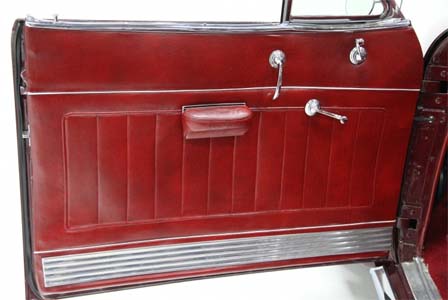

All-leather upholstery of the convertible coupe;
luxury at its best

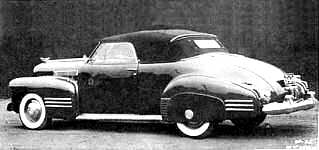

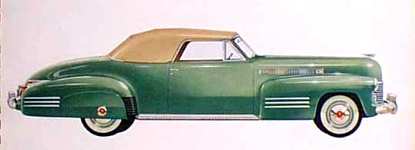

(Left) Catalog illustration; (Right) factory photo

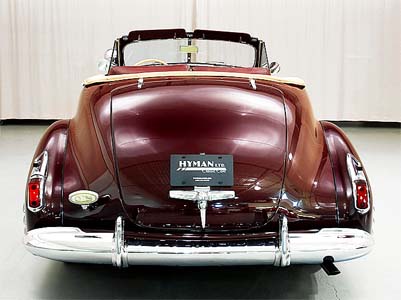

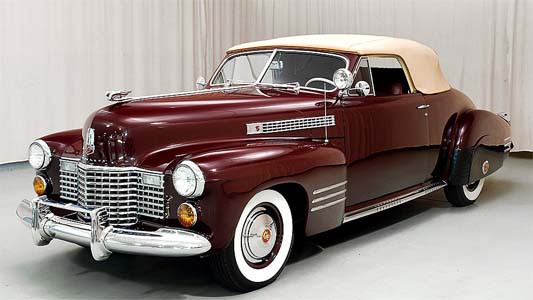

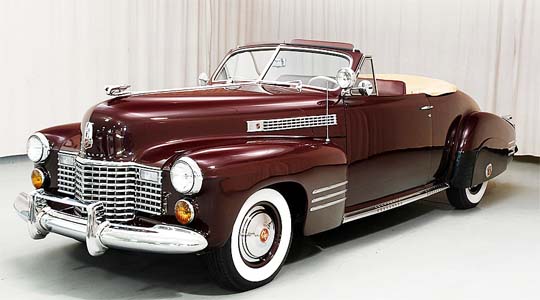

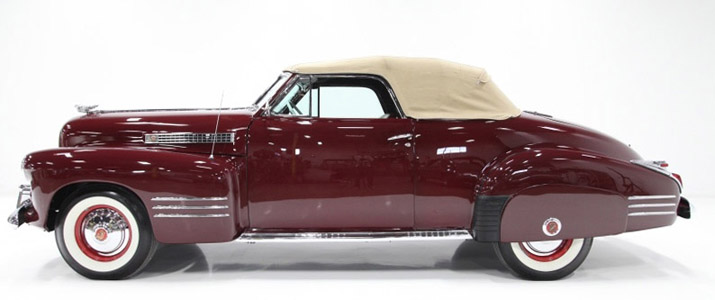

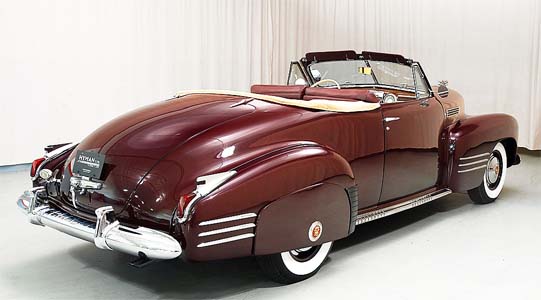

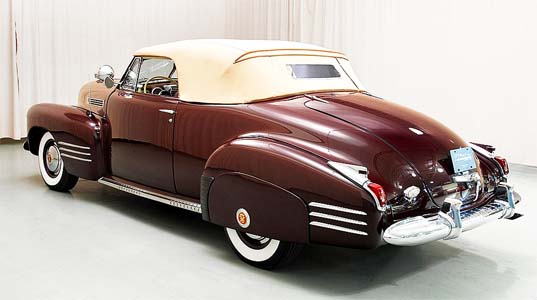

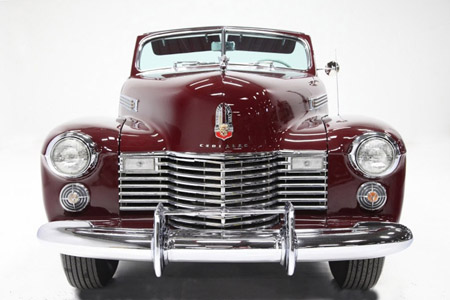

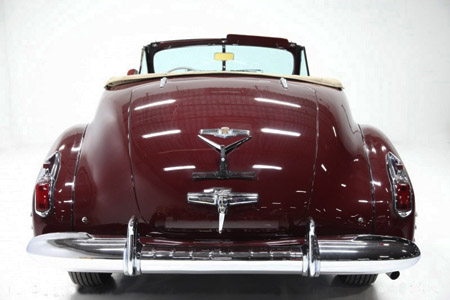

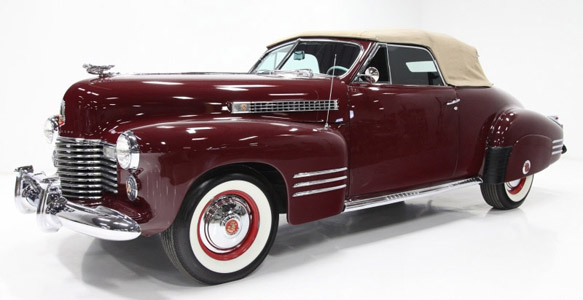

This superb survivor was offered for sale by Hyman Ltd., Classic Cars
[ Photos: (C) Hyman Ltd. ]

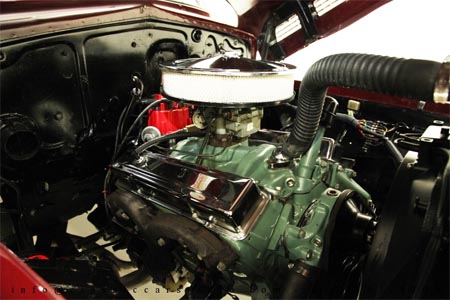

Another survivor (conversion) on Internet
(with some non-original features)

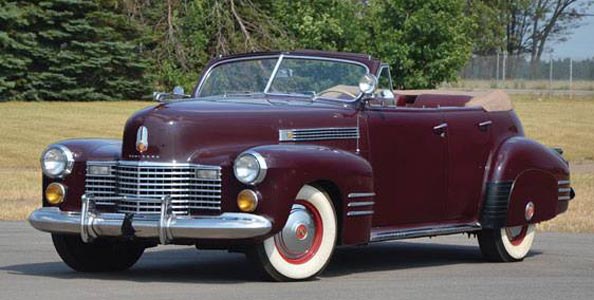

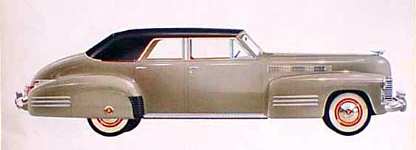

The de luxe convertible sedan, style 6229D
A mere 400 units were built; the cost was $1965



All-leather upholstery of the
convertible sedan


Catalog illustration;

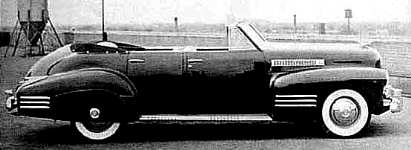

Factory photos taken atop the GM building in downtown Detroit


I believe the beautiful survivor on the left belongs to enthusiast Doug Houston of Detroit, MI.

 Two two more survivors







The Series 63



The luxurious rear quarters
(note plain seat cushion but tufted seat back)



The touring sedan for five passengers, style 6319
5050 units were built; they cost $1695

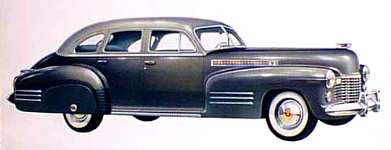

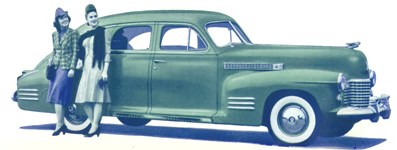

Catalog illustrations

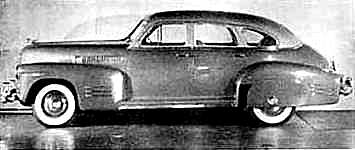

Factory photo (poor quality scan)


Factory photo - better quality


(Left) Factory publicity photo; (Right and below)   surviving cars






The Fleetwood Series Sixty Special

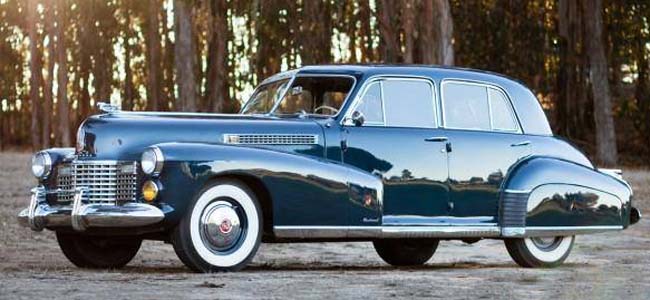

The Sixty Special sedan for five passengers, style 6019;
3693 of them were built and cost $2195 each

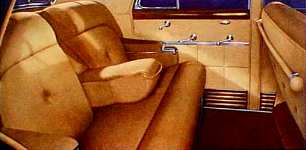

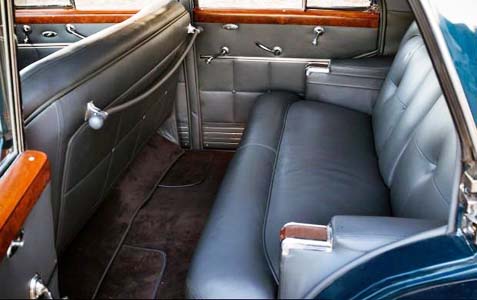

The sumptuous interior of the
Series Sixty Special sedan

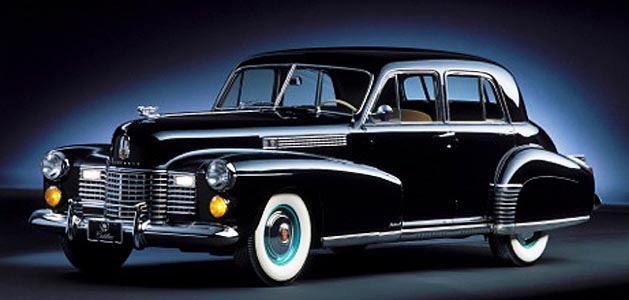

This fine survivor resides in Cadillac's own collection at the GM Heritage Center in Detroit

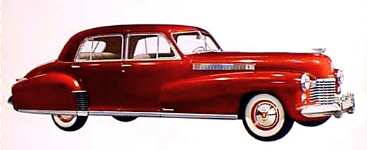

Catalog illustrations

One bare chassis was delivered to an independent coach builder.
This elegant town car may be the result
Fleetwood too built a unique town car on the 126" wheel base chassis
of the Series Sixty Special; it was similar to the car above

The luxurious Sixty Special was available also with an electric division.  Thus outfitted it was termed style #6019F.
Only 220 of the latter were built; they cost $2345 each

The Sixty Special  was available also with a sun roof.  Thus outfitted it was termed style #6019A.
Only 185 of the latter were built; each one cost $2280

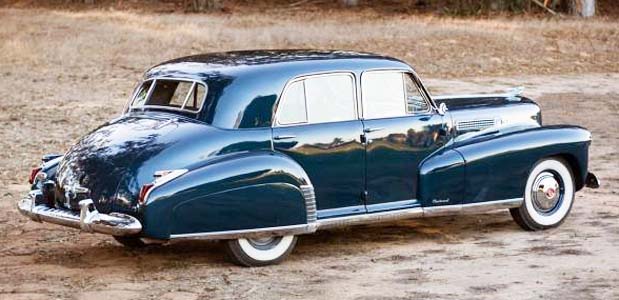

A fine survivor





The Series 67

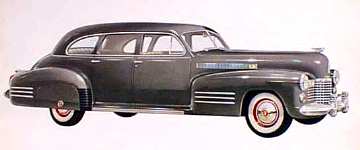

The touring sedan for five passengers, style 6719
315 were built; each one cost $2595



Spacious rear quarters of the
touring sedan for five passengers


The partition in style 6719F

A formal version of the Series 67   sedan for 5 passengers also was available.  When fitted
with an electric division, it got style #6719F; only 95 of the latter were built and cost $2745 each







The plain seating contrasts with the
pleated seat back and door panels

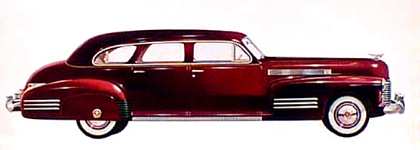

The touring sedan for seven passengers, style 6723
280 of them were built and they cost $2735



The formal version of the Series 67 sedan for 7 passengers was termed the Imperial Sedan;
it was style #6733; appointments were similar to those in the car above;
all 210 units had an electric division; the cost of this model was $2890





The Fleetwood Series 75

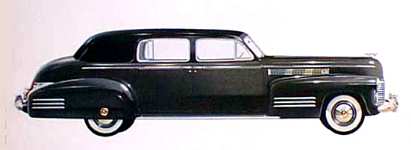

The touring sedan for five passengers, style 7519
422 of these were built;  the cost was $2995



No auxiliary seating in this spacious, comfortable car
for five passengers (note "flip-over" foot rest)


One hundred thirty-two additional units were built with a formal division separating the chauffeur from the rear compartment passenger;   this model carried style #7519F (see below) and  cost $3150

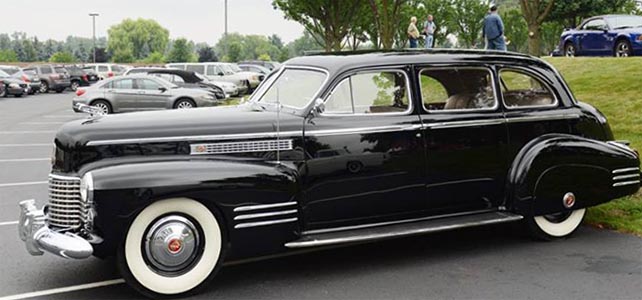

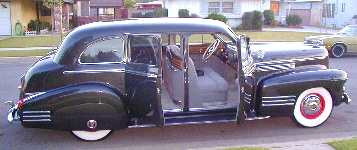

Above 3 rows: This fine survivor belongs to Bill Fries, CLC member from S. California
[ it is the same body style as my own 1942 Black Pryncess ]


Where is this fine survivor located?







The plushest of the Fleetwood interiors
are found in the Series 75 cars

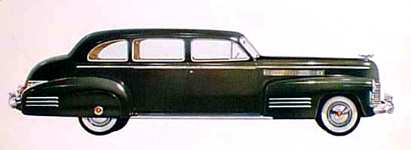

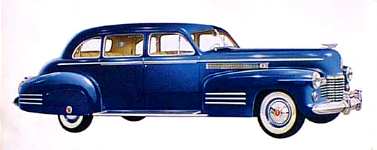

The touring sedan for seven passengers, style #7523
405 units were built, costing $3140


Catalog illustrations

Ninety-eight additional units were built with a formal division separating the chauffeur
from the rear compartment passengers; this model carried style #7533F;
it cost $4045 and was the most expensive car in the 1941 line-up

This elegant survivor belonged to a member of the DuPont family;
it has been in the same ownership for over 50 years

This fine survivor was offered for sale on eBay in September, 2005

A further 54 units were built with livery trim (for hire); these were fitted with special auxiliary seating,
wide enough to accommodate  three adults comfortably.  Termed the "business sedan" for nine passengers,
these cars carried style #7523L ["L" being short for "Livery"]; they cost $2895 each;
their finish was less luxurious than in the regular 7-passenger car; six additional "Livery" units were fitted
with a partition and division glass; these carried Fleetwood code #7533L and cost $3050

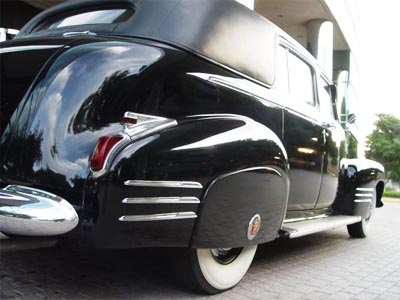

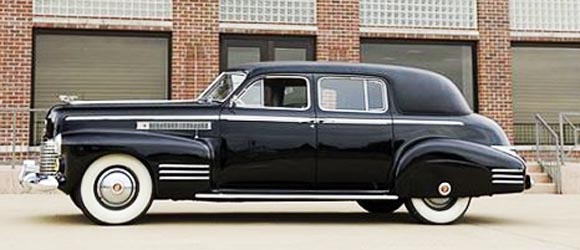

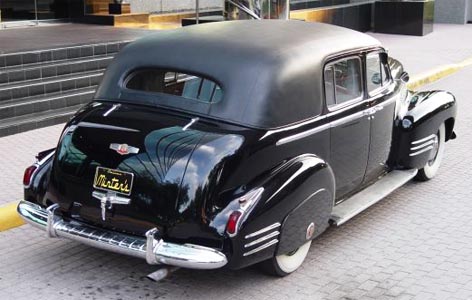

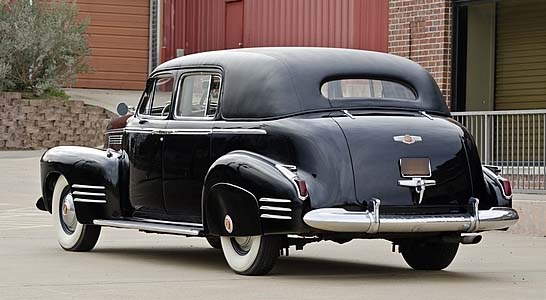

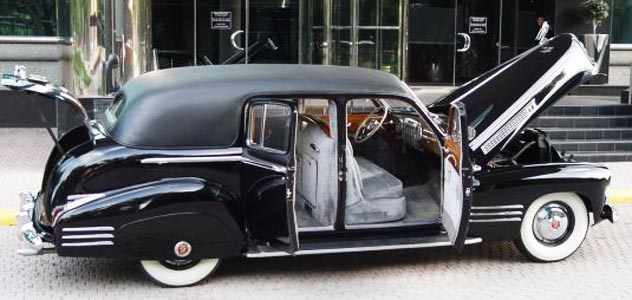

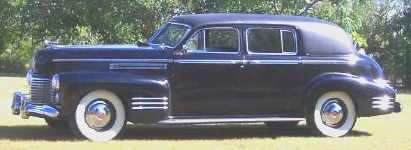

The formal sedan for five passengers, style 7559
75 units were built; they cost $3920

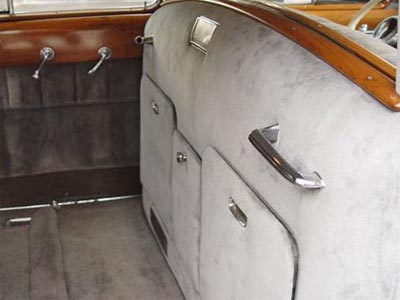

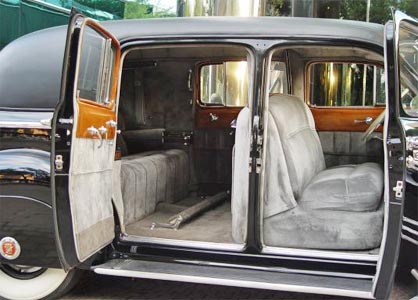

The enclosed rear quarters
featured a small rear window



(Left) catalog illustration of folding opera seat; (Right)  photo of a survivor in the seventies

This model incorporated lightweight auxiliary seating for two.  Of the two "opera seats", as they were called,
the one on the left faces the RH side of the car, while that on the right faces the rear.

Series 75 cars all featured a smoking set in the LH rear armrest; there was also a small notepad and pencil in a special slot in the LH arm-rest smoking set; in the RH armest
unit, the  pad and pencil were replaced with a small hand-held vanity mirror for Madame [... so the "vanity items" in the Eldorado Brougham models of 1957-58 were déjà vu!]

Also included in the Series 75 production were five chassis on the same 136-inch wheel base as the cars in this group, and 150 so-called "commercial chassis");
the latter were bought up by specialty coach builders and fitted with bodies for the funeral trade (hearses, flower cars, etc.) and as emergency vehicles (ambulances)







    Details

Catalog illustrations showing the instrument panel and controls

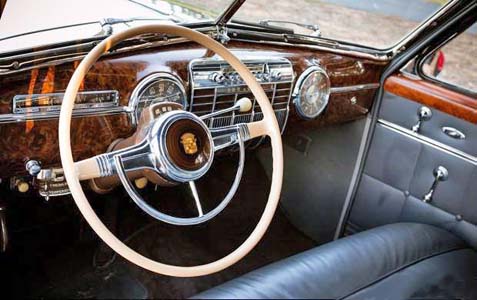

Instrument panels from two surviving cars

The reliable flat-head V8,
basically unchanged since 1936







1941

L'Amérique n'est toujours pas en guerre du côté des alliés, mais cela ne va pas tarder. La production des automobiles Cadillac cessera au mois de février l'année prochaine (1942) et cela pendant près de quatre ans. En attendant, ce ne sont pas moins de 66'000 Cadillac qui trouveront acquéreurs en 1941, par des temps pourtant difficiles et incertains.

La gamme des Cadillac cette année-là comporte six séries différentes. Ce sont les séries 61, 62, 63 et 60S, d'un empattement de 320cm, et les séries 67 et 75 d'un empattement de 353cm. Les modèles La Salle (séries 50 et 52) ont été retirées de la fabrication et remplacés par les Cadillac de la série 61. La série 67 remplace la série 72 de l'année précédente. Cadillac a cessé également la production des modèles à moteur 16-cylindres (série 90).  La fabrication des V-12, quant à elle, a cessé depuis quatre ans déjà.

Les nouvelles Cadillac ont un moteur V8 de 5,7 litres de cylindrée. A le suite d'une augmentation du taux de compression ainsi que des modifications de détail, au niveau des soupapes par exemple, la puissance passe de 140 à 150CV tandis qu'on a pu baisser la consommation d'environ 15%.

Dans la série 61 sont proposés deux modèles équipés d'un pavillon fuyant. Le coupé 61 possède une large banquette AR, tandis que la berline est équipée de glaces de custode.

Les modèles des séries 61 et 62 sont disponibles en une version standard et une autre de luxe. Seuls deux modèles découvrables figurent au programme de 1941: un cabriolet 2-portes et une grande berline de voyage. La série 63 comporte un modèle unique; c'est une carrosserie nouvelle dotée d'une malle AR et de glaces de custode.

Dans la série 67 on trouve des berlines de 5 et 7 places. La ligne de pavillon est plus basse que celle des modèles de la série 75.

Toutes les voitures de la gamme paraîssent plus lourdes au niveau du capot moteur et des ailes. Les parechocs sont plus solides et comportent de plus gros butoirs.

Le tableau de bord a été redessiné pour plus de confort. A la droite du volant sont groupés la clé de contact, le starter et le démarreur. A gauche on trouve l'interrupteur des phares et ceux des autres accessoires électriques. La colonne de direction et le levier de changement de vitesses sont masqués par un cache en métal de forme elliptique. La manette des clignotants se situe à gauche du volant; elle revient automatiquement au point mort après chaque virage. Un témoin lumineux rouge clignote lorsque l'indicateur de direction est en marche.

Tous les modéles sont équipés d'un allume-cigares automatique à l'avant. Sur la berline 5-places et la berline de tourisme à 7-places de la série 67 ainsi que sur la berline de cérémonie de la série 75, la glace de séparation du chauffeur est actionné par un moteur électrique.

Les moteurs Cadillac de 1941 tournent moins vite en raison de changements au niveau des rapports du différentiel.

* * * * *

Les informations chiffrées sont tirées d'une part de la revue américaine «MOTOR» du mois d'octobre 1940 et du très beau livre illustré intitulé Cadillacs of the Forties de mon ami Roy Schneider (Heritage Press). Quant aux merveilleuses illustrations elle proviennent du superbe catalogue en couleurs de l'année, au format géant.
