Unless otherwise specified all photos and illustrations are from Yann Saunders'
collection of Cadillac photos, advertisements and product catalogs,
reproduced courtesy of the Cadillac Motor Car Division and the Cadillac-LaSalle Club





What Cadillac enthusiast would not have loved to have been around - with plenty of money - in 1930 and 1931.  Can you imagine being able to visit the local Cadillac dealership and choose among some one hundred-and-forty different1 models?

Such was the good fortune of those who had been able to keep their fortune ...after the Wall Street crash of October 1929.

Potential Cadillac buyers were confronted with a bewildering   array of models.  There were fifteen different offerings on the La Salle chassis alone (the Series 340), four of them by Fleetwood.   On the Cadillac V-8 chassis (the Series  353), there was a choice of seven different models by Fisher and fourteen special custom by Fleetwood.  On the new V-16 chassis introduced in January 1930 and built through February, 1932 (the Series 452-452A), Fisher and Fleetwood together built more than eighty different styles including thirty one-of-a-kind creations (twelve of them by Fisher and nineteen more by Fleetwood).  Finally, with the fall, came the new V-12 chassis (the Series 370) with eleven bodies each by Fisher and Fleetwood.  You do the addition! It puts to shame today's choice of only 5-6 Cadillac models!

These were the days all right ... if you had moolah!

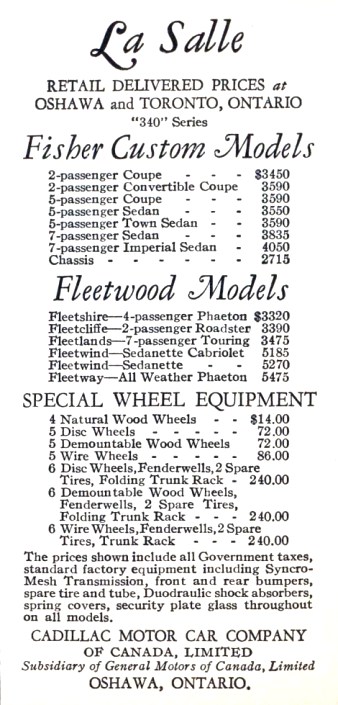

Original 1930 model and pricing information (Canadian prices, right)



Each model Series had its own ID badge mounted on a curved stanchion between the two headlights. There were other obvious differences between them, including the design of the engine hood, body sills design, tail-lights, wheel caps, etc.

This page illustrates only the 1930 Cadillac models built on the V-8 chassis (the Series 353 - so named because of the volumetric displacement of the engine, measured in cubic inches).  For information and pictures of other 1930-31 cars (e.g. the La Salle and V-16), please refer to the appropriate Database pages linked above.

Once again the easiest way to identify 1930 Cadillac V-8 models is by the front grille ID badge (below, left) and the many vertical hood louvers stretching between the radiator shroud and the cowl (below, right); the 1929 models had fewer of these louvers, starting about midway back from the radiator).



Left: front grille badge of 1930 V-8 models
Right: Cover of one 1930 product catalog





According to one of the sales catalogs put out that year, "Outwardly, the new cars are identified by a bold, straight-line moulding treatment from the radiator casing to the rear quarter, unbroken by cowl band or door pillars - by a wider expanse of radiator, flanked by larger headlamps; by a slightly sloping windshield with short, cadet-type visor; and by a trimly tailored valance across the rear of the car". Rear seats also were 4" wider than in previous Cadillac models, allowing three adults to share it without crowding.

Additional information on the 1930 Cadillac models and the related sales literature may be found  in The (New) Cadillac Database© sections entitled "Descriptions and Specifications of Cadillac Cars 1922 - 1931",  "Cadillac and La Salle Sales Literature 1930 - 1934"and "Dream Cars of 1930 - 1932"Further recommended reading includes:

The "Standard Catalog of Cadillac, 1903-2000" edited by James T. Lenzke, © 2000, published by Krause Publications, Inc., 700 E. State Street, Iola, WI 54990 [ISBN #0-87341-925-1, Library of Congress #91-61301].

For this graphic presentation of the new, V-8 models for 1930 I have divided them, into two groups, below:  (a) the entry-level cars with nonetheless excellent coachwork by Fisher and (b) the more luxurious models with special custom bodies by Fleetwood. Some photos of surviving cars are interspersed with original factory photos and drawings.
___________________________________
1   By "different" models I mean those assigned a distinctive or individual job or style number by Fisher or Fleetwood



Bodies by Fisher
[7 styles]

The B&W artist's renderings, below, are from the 1930 catalog entitled "New Interpretations of Motoring Luxury" of which part of the cover page serves as the background image for this page.  They are listed in ascending order of their list price



Fisher style #30-158 coupe for 2 passengers
List price: $3,295 (weight 4,955 lbs)

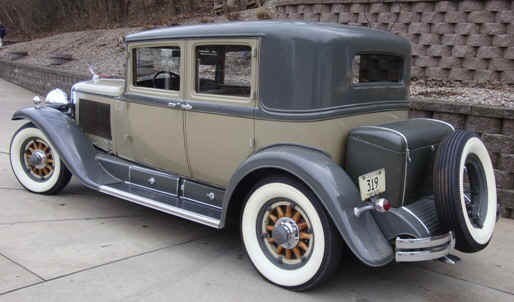

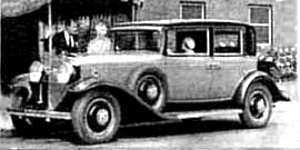

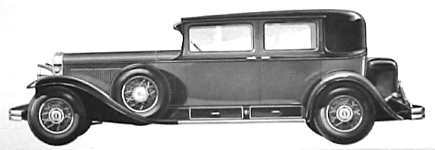

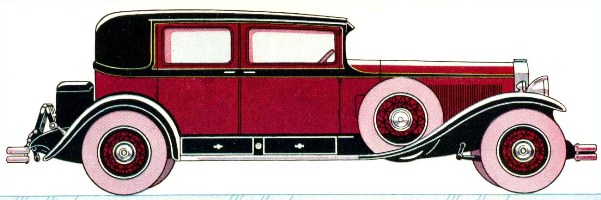

Fisher style #30-152 town sedan for 5 passengers; list price: $3,495 (weight 5,040 lbs)
Detail of the the integral trunk is shown at right; a folding luggage rack was also included

This artist's view is from an item of merchandising literature of the period
[ Source:  Z. Taylor Vinson collection ]

Publicity shot of the period

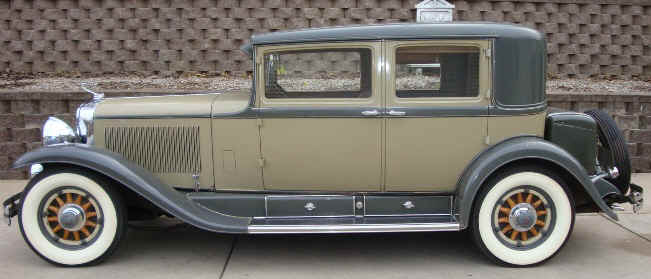

A fine survivor; different lighting suggests different colors
[ Photo (left): © 1999, Yann  Saunders; right:
© 2000, J. Scott Harris ]

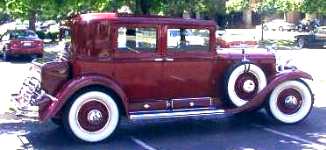

Another nice-looking survivor

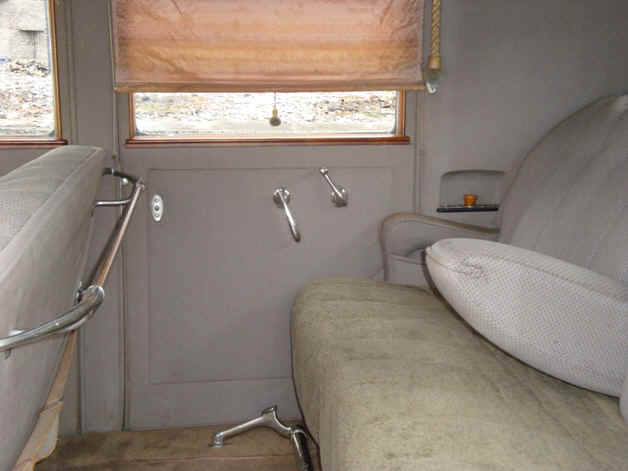

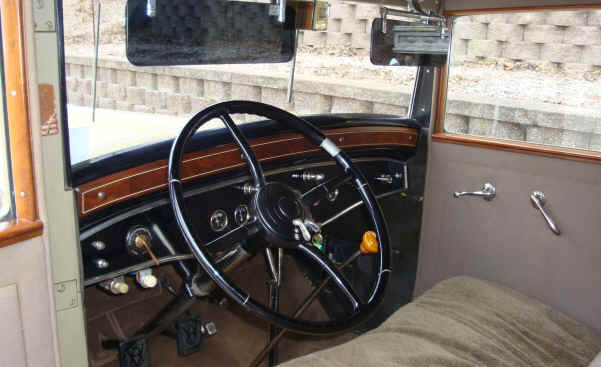

This superb survivor in original condition (engine, paint and trim) was hidden
in a shed for 65 years
; it has only 55,000 miles on the odometer
[ Photos; ©2010, David Brommerich, owner ]

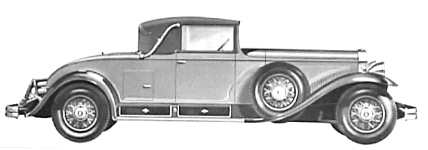

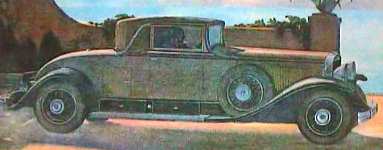

Fisher style #30-168 convertible coupe for 2 passengers; list price: $3,595 (weight 4,860 lbs)
Details of the folded top and rumble seat are shown, right

Illustration from 1930 product catalog

Bird's eye view of a survivor (right)

A beautiful survivor

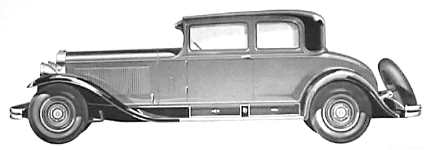

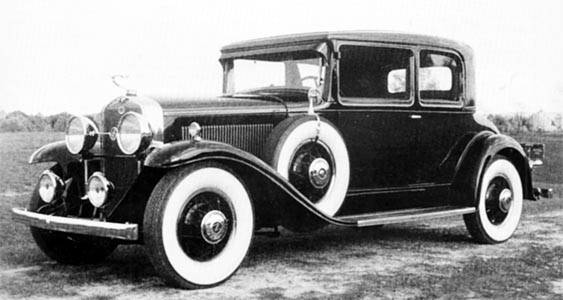

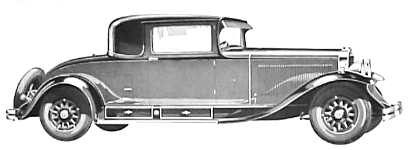

Fisher style #30-172 coupe for 5 passengers
List price: $3,295  (weight 4,945 lbs)



Photo:  Self Starter

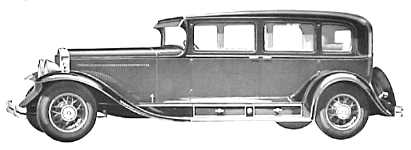

Fisher style #30-159 sedan for 5 passengers
List price: $3,695  (weight 5,070 lbs)

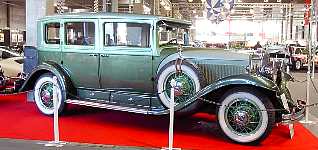

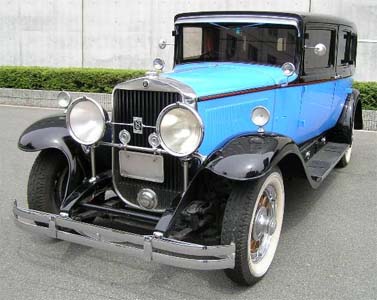

Above three rows: some fine survivors
[ Photos: Internet ]

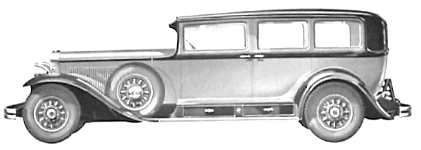

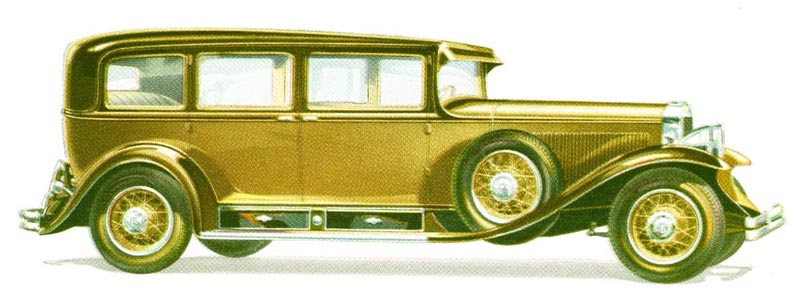

Fisher style #30-162 sedan for 7 passengers
List price: $3,795  (weight 5,170 lbs)

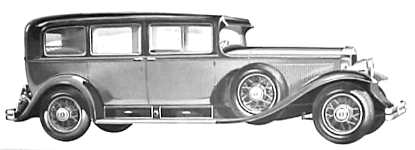

Fisher style #30-163 limousine for 7 passengers
List price: $3,995  (weight 5,210 lbs)

Illustration from 1930 product catalog





  Bodies by Fleetwood
[14 special custom styles]

Although each of these bodies carried its own, specific job number, they were identified in merchandising literature by a fancy-sounding name beginning with "Fleet...", all reminiscent of bucolic (if imaginary) English hamlets: Fleetdowns, Fleetway, Fleetwind, Fleetdene, Fleetmere, Fleetdale, Fleetwick, Fleetcrest and Fleetbourne; (in  addition, on the La Salle chassis, were also the Fleetcliff, Fleetlands and Fleetshire models); in fact, the cover of each folder in the large, prestige, Fleetwood color portfolio for 1930 carries an art-deco drawing of typical English country scenes. Similar scenes are painted in the 1930 catalog "The Picture Book of Cadillac".

All these bodies, and more, were available also on the V16 chassis (Series 452-452A) in 1930 and 1931; however, none of the fancy "Fleet..." names were used.  I guess the copywriters would have been hard pressed to find fifty or more  of these fancy names for the numerous new styles available.  The V-8 bodies were mounted also on the new V12 chassis (Series 370), starting in September 1930, but there is no reference to these "Fleet..." names in any of the V-12 literature I have seen.  Of course, the V-12, Series 370, was essentially a 1931 model, although it made its first appearance in October, 1930.

The artist's drawings below are from the extremely rare, and [today] very costly prestige color portfolio of Fleetwood styles on Cadillac and La Salle chassis for 1930. I have seen pristine examples offered for sale in recent years in the $2000-2500 range! To illustrate this page of the Database, I was fortunate to be able to borrow a magnificent example from a fellow literature collector in Washington, D.C. , Mr. Taylor Vinson.

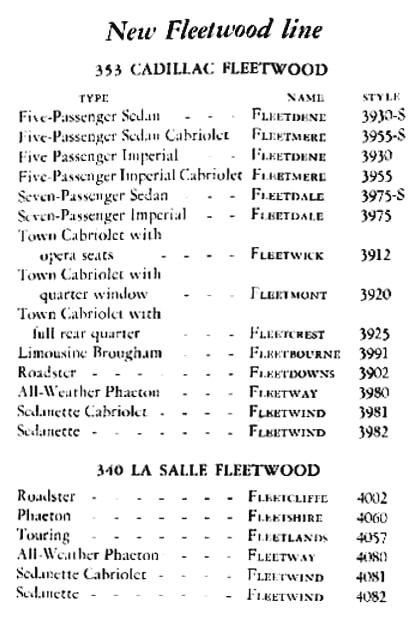

Only the basic selection of Fleetwood styles is shown here, where possible in ascending order of list price.  There were many more variations on these basic themes; indeed, Fleetwood catered to individual desires and would frequently build-to-order for its moneyed clients.

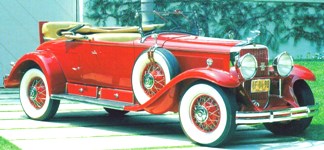

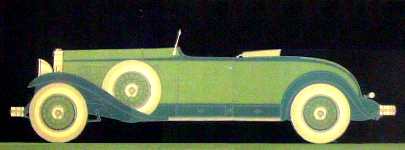

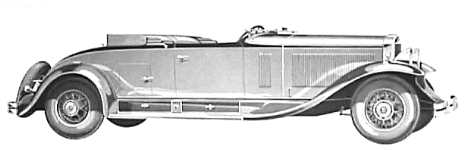

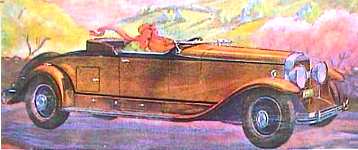

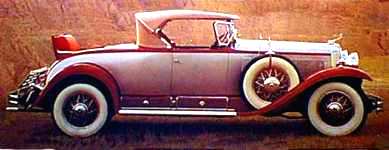

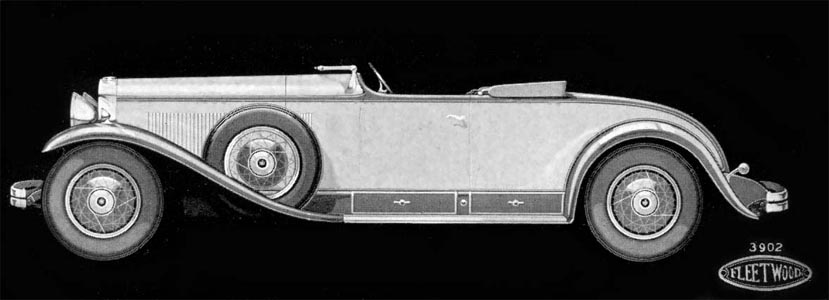

"Fleetdowns" roadster, style #3902; list price $3,450; weight 4,625 lbs;
a similar style, the La Salle "Fleetcliff",  cost $2450


Seating plan (left) and rumble seat detail (right)

Detail of the folding windshield is shown at right

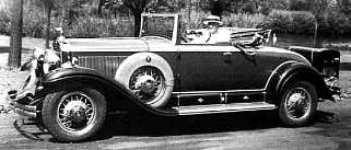

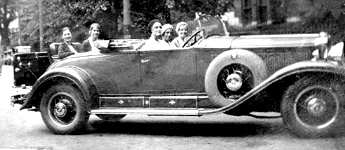

Outings in Cadillac V-8 roadsters, circa 1930

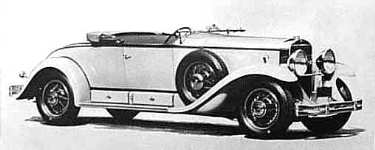

Factory publicity shot (left) and illustration from 1930 product catalog (right)

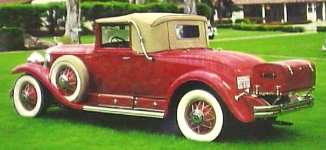

Three survivors

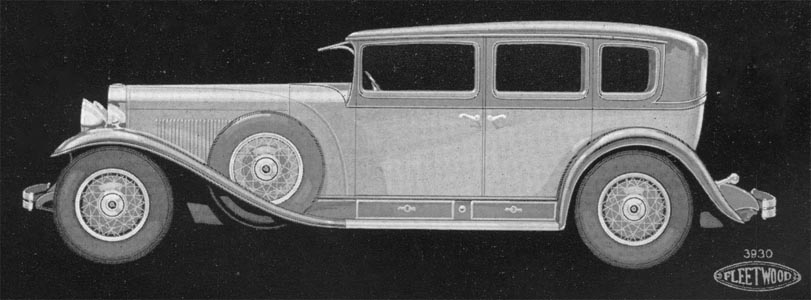

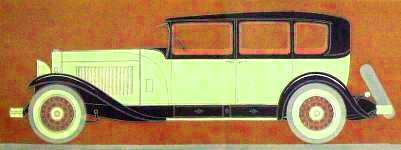

"Fleetdene" sedan, style #3930-S;
weight 5,150 lbs, list price $4195)

There are no external differences between Styles #3930 and 3930-S

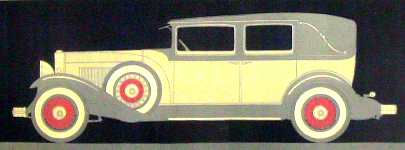

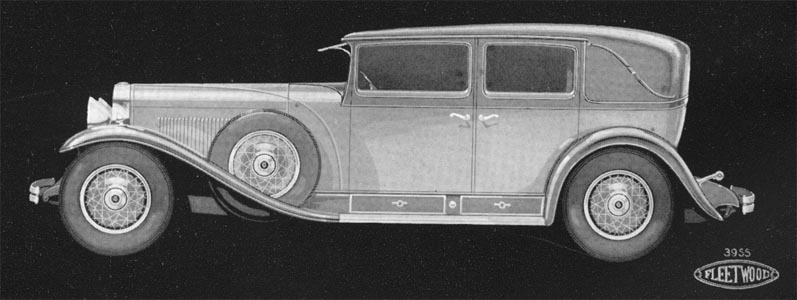

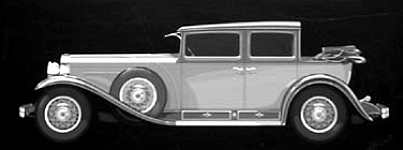

"Fleetmere" sedan, style 3955-S
weight  5,200 lbs; list price $4,245

[from original portfolio; color modified by Y. Saunders
to differentiate between limousine and sedan]

There are no external differences between Styles #3955 and 3955-S

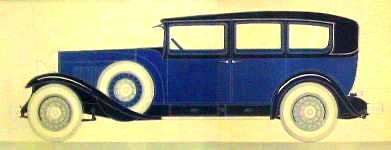

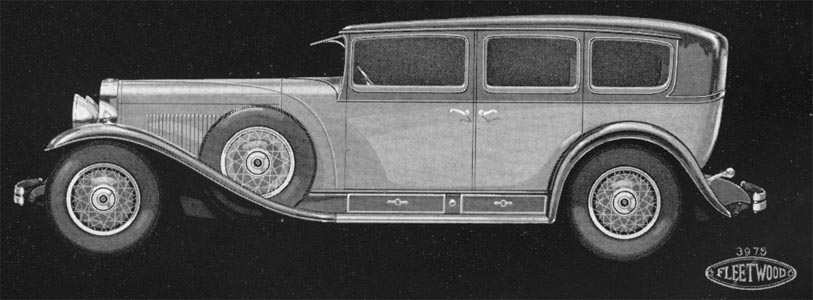

"Fleetdale" sedan, style #3975-S,
weight 5,280 lbs; list price $4,295

[from original portfolio; color modified by Y. Saunders
to differentiate between limousine and sedan]

There are no external differences between Styles #3975 and 3975-S







"Fleetdene" limousine (with division), style #3930;
weight 5,220lbs; list price $4,395

[from original portfolio; color modified by Y. Saunders
to differentiate between limousine and sedan]

There are no external differences between Styles #3930 and 3930-S







"Fleetmere" limousine (with division), style #3955,
weight 5,240 lbs; list price $4,445

There are no external differences between Styles #3955 and 3955-S

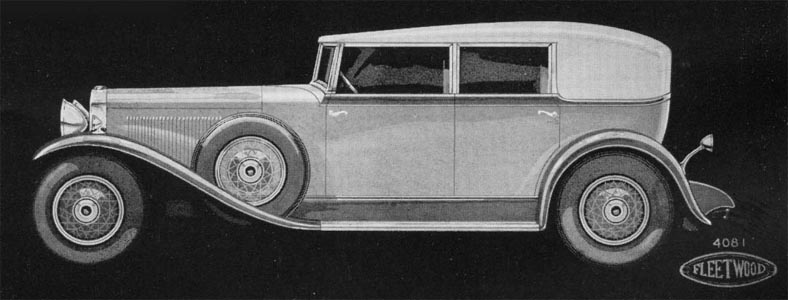

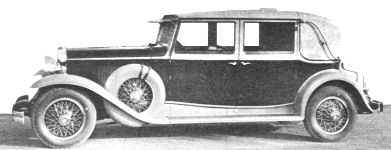

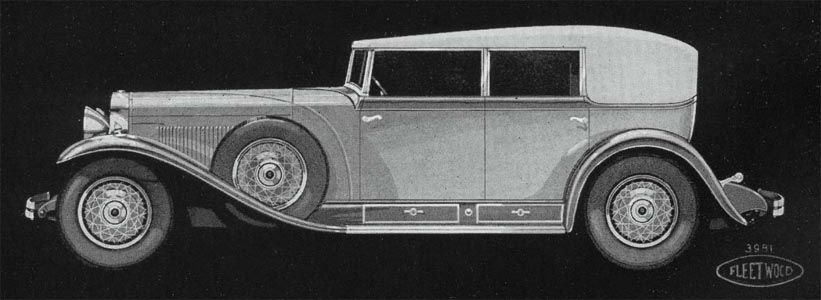

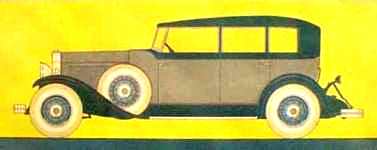

"Fleetwind"  cabriolet, style #3981, a fixed top sedanette cabriolet
version without quarter windows and with a light colored Burbank top over metal;

weight 5,070 lbs; list price $4,500

Not sure if these two images are of the same "Fleetwind" cabriolet

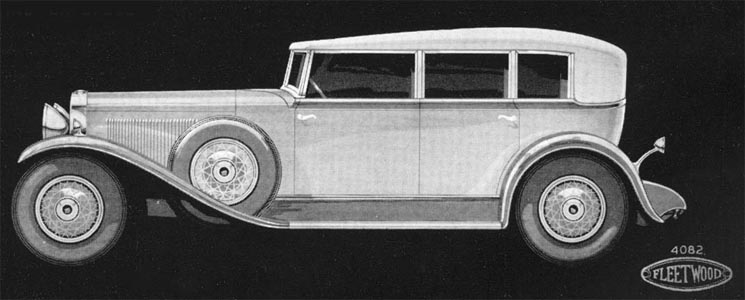

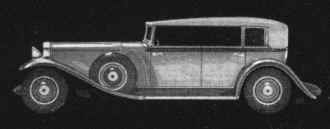

"Fleetwind" (or "Fleetwing?) sedanette, style #3982, a fixed top sedan
with quarter windows and with a light colored Burbank top over metal;

designed for the La Salle, this body style was used also on Cadillac chassis;
weight 5,070 lbs; list price $4,595

[oddly, the same name, "Fleetwind",  appears to have been used for two distinctively different styles, although I've also come across "Fleetwing" for this style]







"Fleetdale" limousine (with division), style #3975,
weight 5,320 lbs; list price $4,595



There are no external differences between Styles #3975 and 3975-S

At least one of these was made with RHD and was acquired at the time by a wealthy Indian potentate.  That car has survived
and is presently being restored (in India) by the owner who bought the car in Indore from Mavendra Singh Barwani, many years
ago. It is the only such model in existence today in India and carries body number 13 [Indian registration number: MKO 1214]

[ Photos and infor, courtesy of Ajit Ramchandran, the owner]

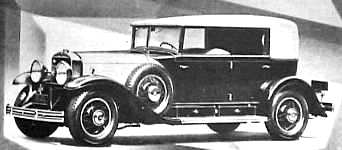

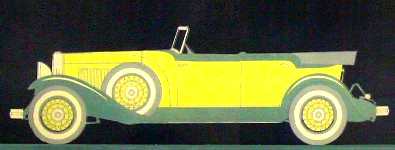

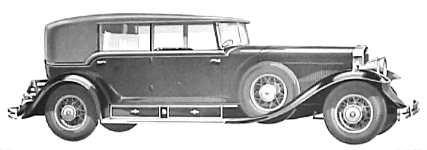

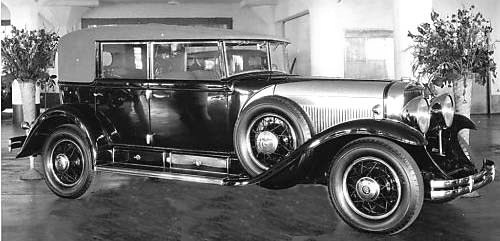

"Fleetway" all-weather phaeton, style #3980;
the top, when folded back, lies flush with the belt line;

this body style was mounted also on the La Salle chassis
weight 4,990 lbs; list price $4,700

Seating plan (left); top in raised position (right)
and semi-convertible phaeton position, below


This illustration is from a period advertisement

Note vertical rubbing strakes on rear body to prevent scuff marks from trunk

Illustration from 1930 product catalog

Survivor photographed by the late Gene Babow (right)

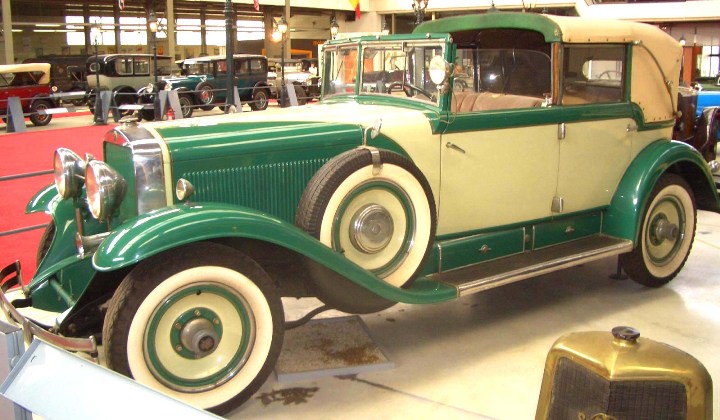

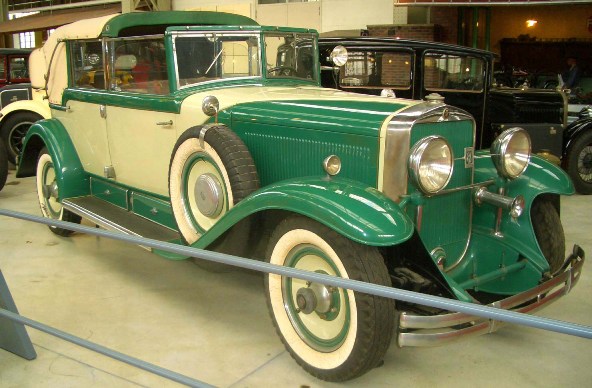

This survivor resides in Belgium's National Motor Museum
where it is wrongly identified as a 1928 model
[ Photos:  courtesy Jeff G., TX ]

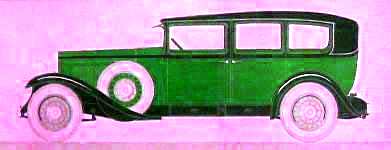

"Fleetdale" sedan, special style #3975-P, list price $4,845;
this model was built-to-order with a plain hood in lieu of Fleetwood's signature, scalloped hood

These illustrations are montages by Y. Saunders from existing factory drawings

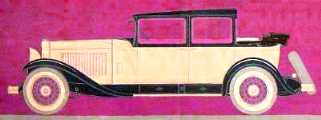

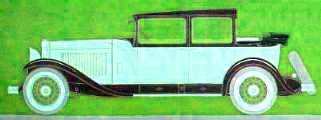

"Fleetdene" landaulet-sedan style #3930-SC; list price $4,995
[This is a montage by Y. Saunders from an original Fleetwood drawing]

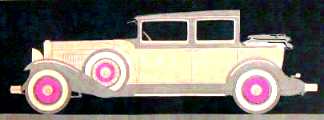

"Fleetmere" landaulet-sedan style #3955-SC; list price $4,995
[This is a montage by Y. Saunders from an original Fleetwood drawing]

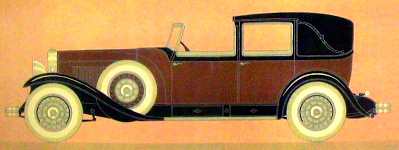

"Fleetwick"  town car for 5 passengers with blanked out rear quarters, #3912;
small vignette (right) shows occasional, so-called "opera" seats;
weight 5,230 lbs; list price $4,995

The seating plan

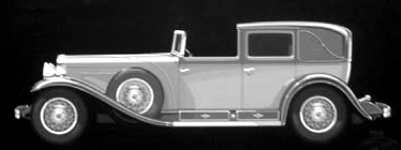

Fleetwood style #3912, the Fleetwick town car for 5/7 passengers
[ Publicity photos of this popular town car style ]

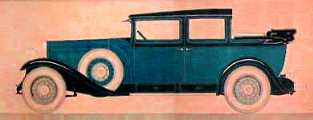

"Fleetdale" landaulet-sedan style #3975-SC; list price $5,095
[This is a montage by Y. Saunders from an original Fleetwood drawing]

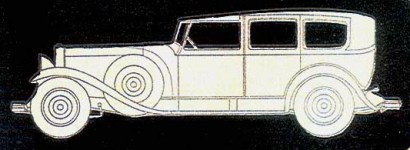

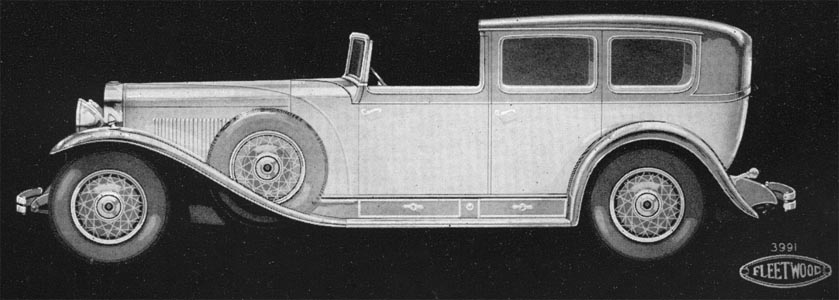

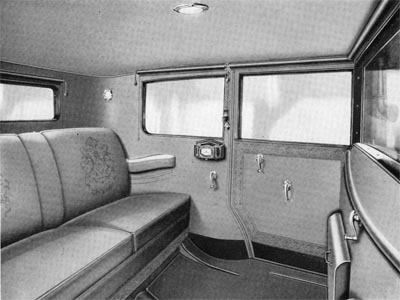

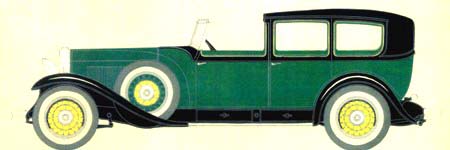

"Fleetbourne" town brougham for 7 passengers, style #3991;
metal roof (no leather); weight 5,320 lbs, list price $5,145.

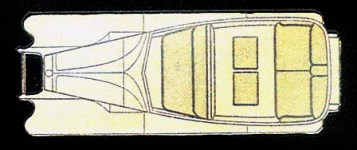

The seating plan (left); driver's canopy cover in place (right)

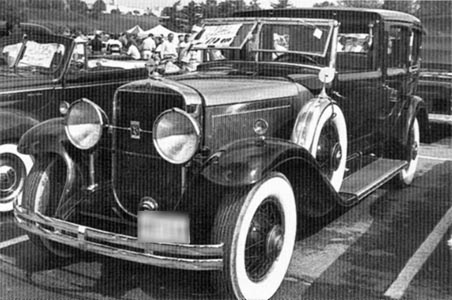

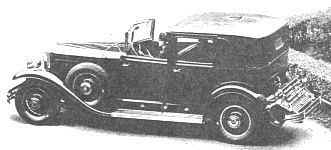

This survivor appears to be of this Fleetwood style

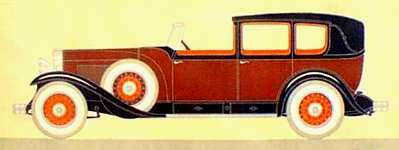

"Fleetmont" town car for 7 passengers, style #3920;
small quarter windows; weight  5,150 lbs; list price $5,145

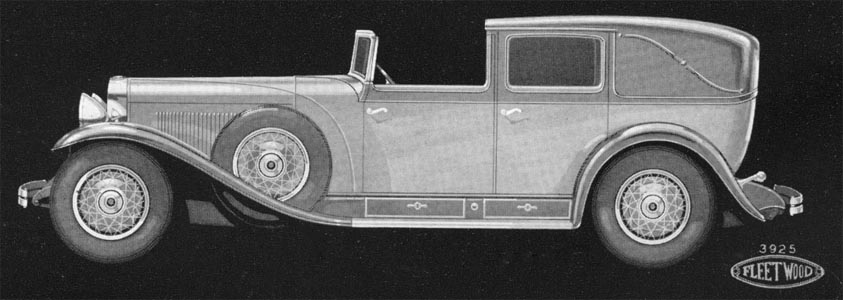

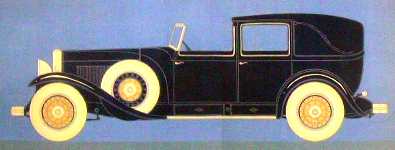

"Fleetcrest" town car for 7 passengers, style #3925, with blank rear quarters;
weight 5,135 pounds; list price $5,145 (i.e. a tad over $1 a pound!)








"Fleetdene" limousine-landaulet style #3930-C; list price $5,195
[This is a montage by Y. Saunders from an original Fleetwood drawing]

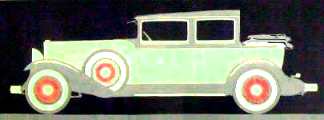

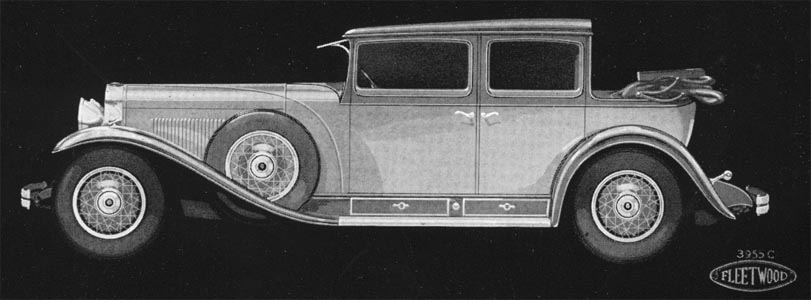

"Fleetmere" limousine-landaulet style #3955-C; list price $5,195
[This is a montage by Y. Saunders from an original Fleetwood drawing]

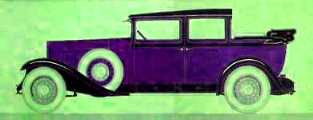

"Fleetdale" limousine-landaulet style #3975-C; list price $5,395
[This is a montage by Y. Saunders from an original Fleetwood drawing]

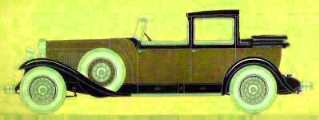

"Fleetwick" town landaulet style #3912-C; list price $5,745

[This is a montage by Y. Saunders from an original Fleetwood drawing]

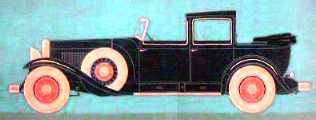

"Fleetcrest" town landaulet style #3925-C; list price $5,895
[This is a montage by Y. Saunders from an original Fleetwood drawing]

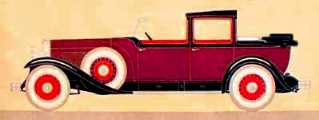

"Fleetmont" town landaulet style #3920-C; list price $5,945
[This is a montage by Y. Saunders from an original Fleetwood drawing]

I believe this is a surviving Fleetwood style #3920-C







The most expensive Cadillac in the V-8 range for 1930 was this
"Fleetbourne" town landaulet style #3991-C; list price $5,945

[This is a montage by Y. Saunders from an original Fleetwood drawing]

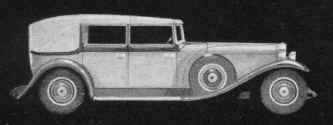

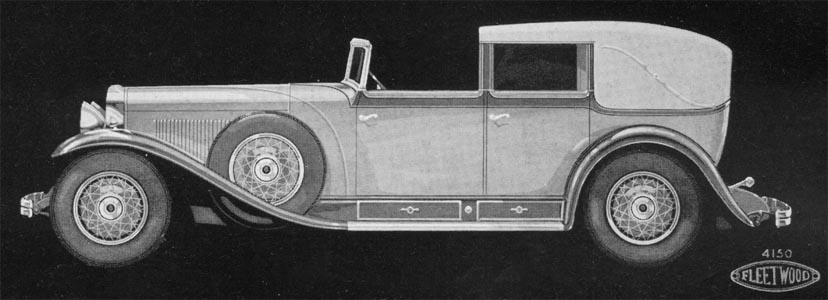

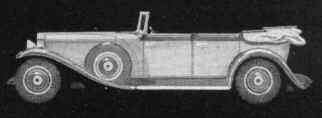

Fleetwood custom style #4150, all-weather phaeton

In his excellent book, Fleetzwood - the Company and the Coach Craft, author James Schild includes for 1930 a custom Fleetwood style #3350 All-Weather phaeton, which I assume to be similar to this model,  but was mounted on a chassis with a wheelbase of  152 inches, as was 1928 Fleetwood style #3208-C, below; two more Fleetwood town car designs were mounted on that long chassis (styles #3412 and #3435); these used for the Series 341-B production of 1928 as well as the Series 353 in 1930

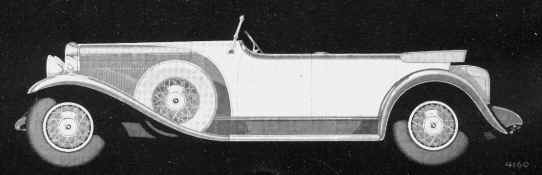

Fleetwood custom style #4160 Phaeton

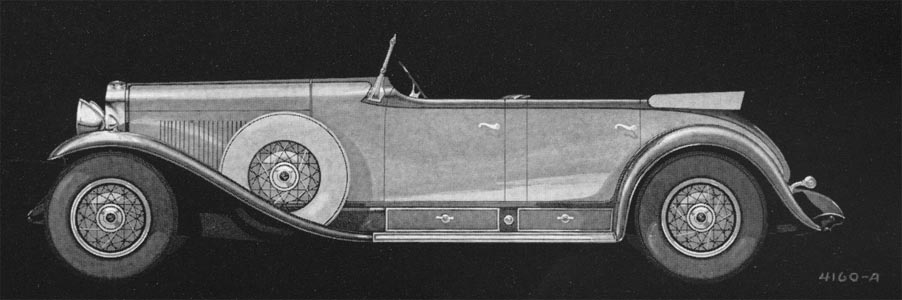

Fleetwood custom style #4160A Phaeton

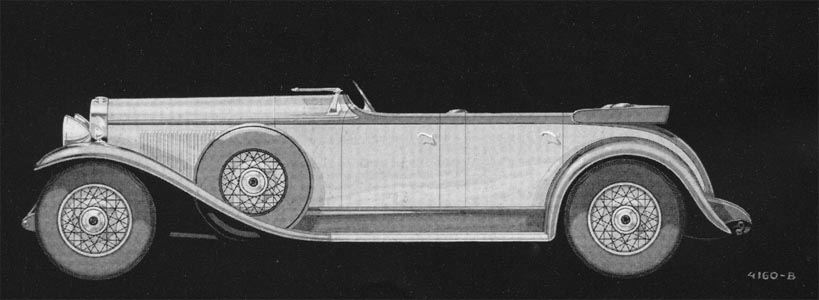

Fleetwood custom style #4160B Phaeton

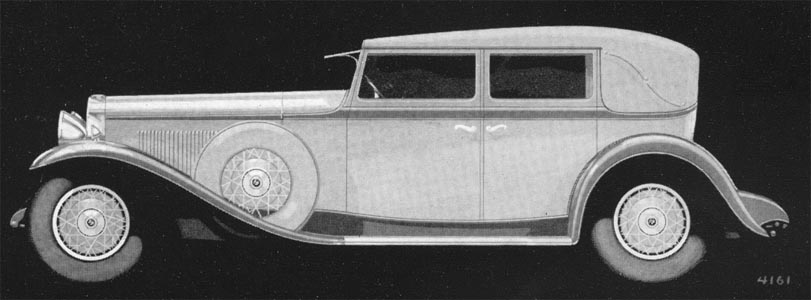

Fleetwood custom style #4161 sedan cabriolet [ NOT BUILT ]

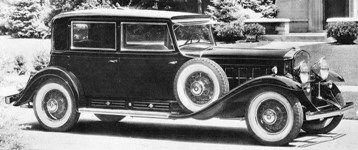

This is a modified version of the original Fleetwood style #4161 (above);
it was built on the V-16 chassis in 1930-31, with and without chauffeur division;
it had a straight sill, flat slanting windshield and belongs to the "Madame X" group of closed V-16s


Fleetwood had built a similar style, but with landaulet roof  (#3208-C) in 1929, on a chassis with 152" wheel base,
reportedly "for a prominent motor-car official"  (Alfred P. Sloan, Larry   Fisher, Harley Earl - who knows?)
I believe that car was shown at the 1929 Paris Salon and became known as the "French Brougham"

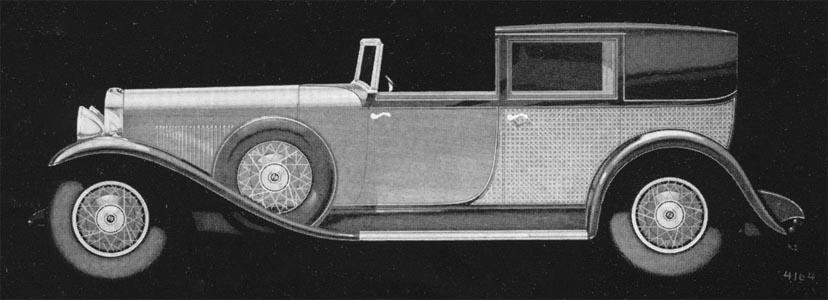

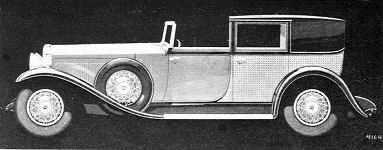

Fleetwood custom style #4164 Town Brougham [NONE BUILT ]

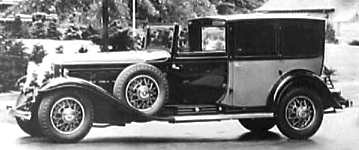

This modified version of Fleetwood style #4164 was mounted on the 1930
sixteen-cylinder chassis; it was numbered
4264-B]

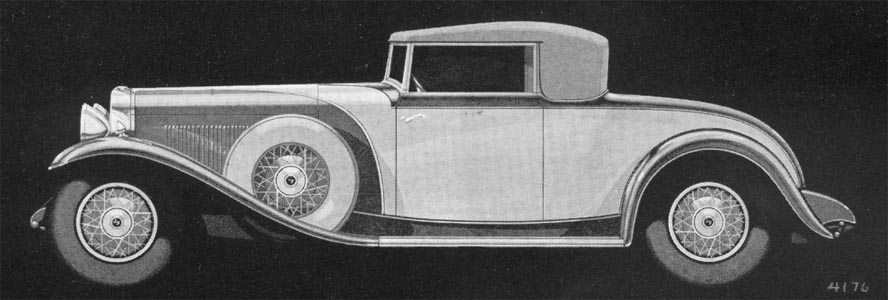

Fleetwood custom style #4176 Coupe

[ NONE BUILT ]

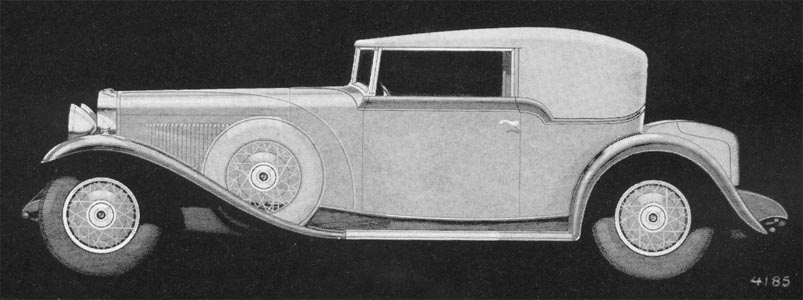

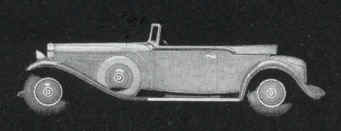

Fleetwood custom style #4185 Convertible Victoria
[ NONE BUILT ]



This is a similar but modified version of the original Fleetwood style #4161 (above);
two units were built on the V-16 chassis in 1930-31









Mystery Cars

This model is  described as a "dual-cowl phaeton"; Cadillac usually described an open car with secondary, folding cowl as a "sport phaeton"; this lovely image is printed on silk and featured on a "kitschy" birthday greeting card I got from Gita, some twenty years ago

This is an older, color PC and probably shows a museum car







Details



From L-R:  (1) Thermostatic radiator shutters, (2) the 1930 V-8 instrument board, (3) folding trunk rack

(Left) 1930, 353ci V-8 engine,  (right)   ¾-floating rear axle

Two different restored instrument panels for 1930







Fleetwood smoking and vanity cases (detail)
were finished with inset upholstery fabric







Dropping the engine onto the chassis

Manufacturer's body plate
