The (new) Cadillac Database©

The Cadillac V-16


Part 1m
Photographic Studies of the V-16 chassis
by Anton Bruehl, 1929


Return to The (New) Cadillac Database© Index Page
or go back to the V-16 index page



Unless otherwise specified all photos and illustrations are from Yann Saunders'
collection of Cadillac photos, advertisements and product catalogs,
reproduced courtesy of the Cadillac Motor Car Division and the Cadillac-LaSalle Club, Inc.



( en bas de page on trouvera un court résumé en français)



The magnificent photographic studies below were commissioned by the firm from talented professional photographer, Anton Bruehl, in 1929.  They describe better than any words the beauty - both aesthetic and mechanical - of the chassis and motor of the first production automobile to have a sixteen-cylinder engine: the Cadillac, Series 452, of 1930.

The brochure from which these photos are drawn is a very rare piece of Cadillac merchandising literature issued at the time of the New York Auto salon of January, 1930.  I was very fortunate to be able to view and to photograph that item in a private collection in Washington, DC, back in 1985.




The mighty Cadillac V-16 chassis and engine
The cover of the 1929 photo portfolio by
Anton Bruehl serves as the background image







Bird's eye view of the
sixteen-cylinder engine


 Pistons, rods and
crankshaft assembly







Pinion, ring gear
and differential assembly


Front spring
and shock absorber


 Rear axle housing
and differential carrier

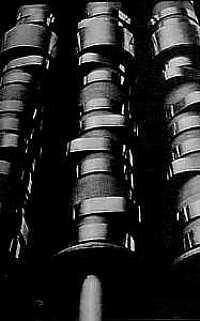

Spare camshafts
with 16 cams each


Timing sprockets
and silent chain

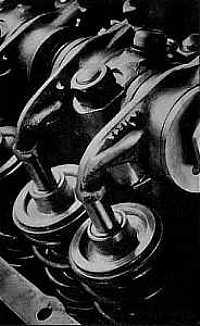

 Valve rocker arms
and silencer mechanism







Steering arm, I-beam
and brake mechanism


Transmission rear support
and brake booster





 Helical gears in
Syncro-Mesh transmission









( résumé en français)

Nous devons à Anton Bruehl, photographe professionnel, les magnifiques photos ci-dessus qu'il a prises à l'usine Cadillac, en 1929, à la demande expresse de la firme.

Elles traduisent mieux que les mots ne sauraient le faire, la beauté aussi bien esthéthique que mécanique du moteur et des principaux organes de la premiere voiture de série mue par un moteur de seize-cylindres: la Cadillac, Série 452, de 1930.

Elles sont tirées d'un prospectus très rare, émis à l'occasion du salon de l'Automobile de New York en janvier 1930, document que j'ai eu l'honneur et le plaisir de pouvoir consulter dans une collection privée à Washington, en 1985.
